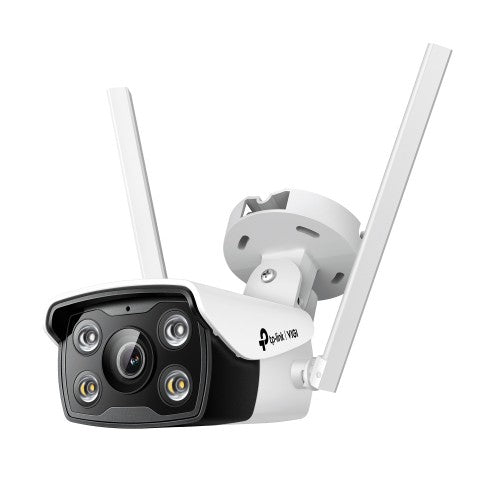

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

1/3” CMOS, 4mm, 2.4 GHz, 1 RJ45 10/100M, IP66, 80 x 70.6 x 173.4 mm

Key Features

• 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
• Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals
• Waterproof: Reliable IP66 for stable outdoor performance
• Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
• VIGI App: Manage your security from the palm of your hand with the VIGI app

Description

All The Colors,
All The Time

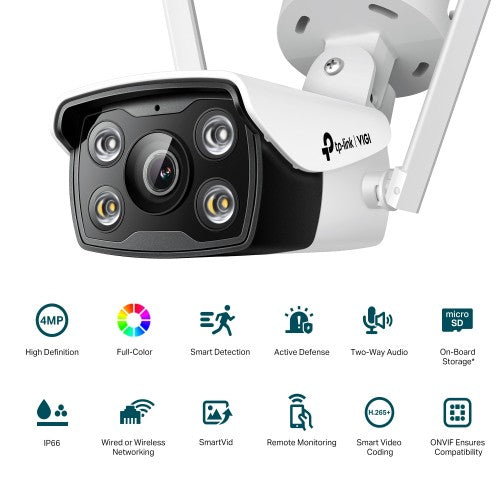

4MP Outdoor Full-Color Bullet Network Camera

- High Definition
- Full-Color
- Smart Detection
- Active Defense
- Two-Way Audio
- On-Board Storage
- Wired/Wireless Networking
- SmartVid
- Remote Monitoring
- Smart Video Coding
- ONVIF Ensures Compatibility
- IP66

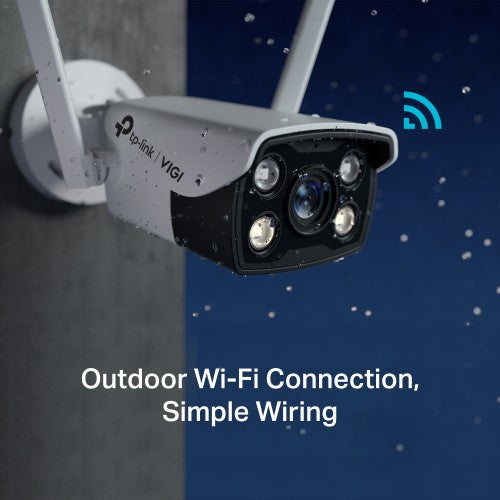

Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI C340-W provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection
Get instant notifications when your camera detects motion.

Area Intrusion
Set customized activity zones around key areas for more focused monitoring.

Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Camera Tampering
Receive alerts when someone obstructs the camera.

Active Defense
Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage

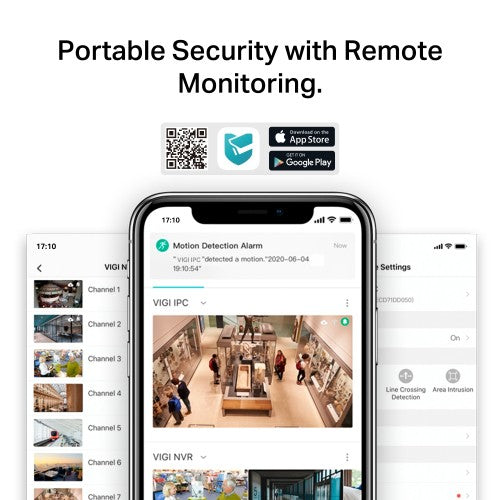

Take full control over your security via three management method, VIGI NVR, App, and Security Manger. Local storage is available for each methods, as well as on-board storage with SD card slot.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired & Wireless
Placement supported	Outdoor
Certification	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Design
Weatherproof	Yes
Form factor	Box
Product colour	White
Mounting type	Ceiling/wall
LED indicators	Yes
International Protection (IP) code	IP66
Housing material	Plastic
Camera
Minimum illumination	0 lx
Lens viewing angle, horizontal	79°
Lens viewing angle, vertical	43°
Lens viewing angle, diagonal	93°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Number of sensors	1
Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera)	Yes
Lens system
Maximum aperture number	1.6
Fixed focus	Yes
Night vision
Night vision	Yes
Night vision distance	30 m
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Mirror
Noise reduction technology	3D noise reduction
Maximum resolution	2560 x 1440 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes	1080p, 1440p
Video compression formats	H.264, H.264+, H.265, H.265+
Video streaming	Yes
Total megapixels	4 MP
Video recording	Yes
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Built-in HDD	No
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired & Wireless
Power
Power source type	DC
Certificates
Certification	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Weight & dimensions
Width	70.6 mm
Depth	173.4 mm
Height	80 mm
Weight	195 g
Package width	152 mm
Package depth	258 mm
Package height	111 mm
Package weight	600 g
Packaging data
Package width	152 mm
Package depth	258 mm
Package height	111 mm
Package weight	600 g
Packaging content
Number of cameras	1
Manual	Yes
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
