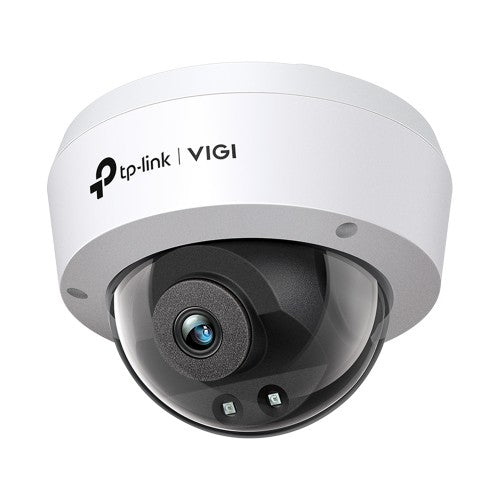

TP-Link VIGI 4MP IR Dome Network Camera

4MP (2560 × 1440), 1/3” Progressive Scan CMOS, 2.8 mm, F2.2, IR Cut Filter, IP67, IK10

Key Features

• 4MP Super-High Definition: The VIGI C240I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects
• IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
• 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C240I comes with two different lens types to better suit your security needs
• Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager

Description

Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C240I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

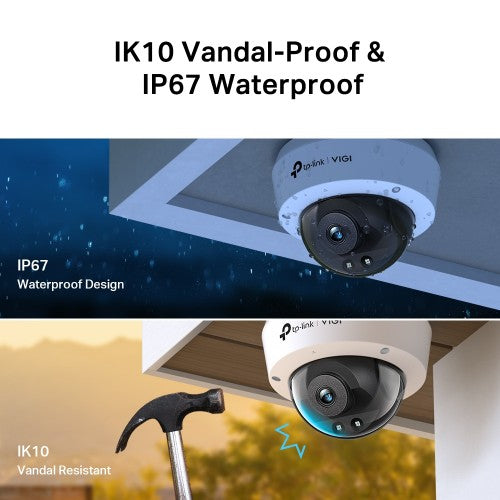

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Day/night mode	Yes
Certification	CE, BSMI, VCCI, ONVIF
Design
IK code	IK10
Form factor	Dome
Product colour	Black, White
Mounting type	Ceiling/wall
International Protection (IP) code	IP67
Housing material	Plastic
Camera
Minimum illumination	0 lx
Lens viewing angle, horizontal	88.8°
Lens viewing angle, vertical	48.9°
Lens viewing angle, diagonal	106.5°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Lens system
Number of lenses	1
Lens diameter	2.8 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	1
Infra-red wavelength	850 nm
Video
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate	64 Kbps - 4 Mbps
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Maximum resolution	2560 x 1440 pixels
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video compression formats	H.264, H.264+, H.265, H.265+
Frame rate	30 fps
Video streaming	Yes
Total megapixels	4 MP
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels	3 channels
Storage
Built-in HDD	No
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Mirror	Yes
Digest authentication	Yes
Management features
Management software	VIGI App, VIGI Security Manager, VIGI NVR
Web-based management	Yes
Power
Power source type	PoE
Power consumption (max)	5 W
Certificates
Certification	CE, BSMI, VCCI, ONVIF
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Weight & dimensions
Width	115 mm
Depth	115 mm
Height	86 mm
Package width	153 mm
Package depth	193 mm
Package height	120 mm
Package weight	460 g
Packaging data
Package width	153 mm
Package depth	193 mm
Package height	120 mm
Package weight	460 g
Features
Basic event	Motion Detection, Camera Tampering Detection, Exception
Sustainability
Compliance certificates	CE
Packaging content
Number of cameras	1
Mounting kit	Yes
Technical details
Compliance certificates	CE
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
