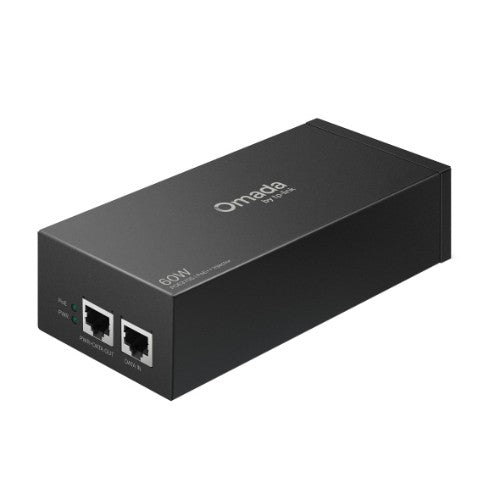

Omada PoE++ Injector
Key Features
- 2 × 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing
Description
The Omada PoE++ Injector POE370S fully complies with IEEE 802.3af/at/bt (type 3) standards with up to 60 W power supply.* It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) |
Yes |
| Ethernet interface type |
10 Gigabit Ethernet |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Features |
|---|
| Wall mountable |
Yes |
| Plug and Play |
Yes |
| Product colour |
Black |
| LED indicators |
Yes |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (typical) |
60 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
-5 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
70 mm |
| Depth |
154.7 mm |
| Height |
42 mm |
| Technical details |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
60 W |
| Ethernet interface type |
10 Gigabit Ethernet |
| Indication |
|---|
| LED indicators |
Yes |
