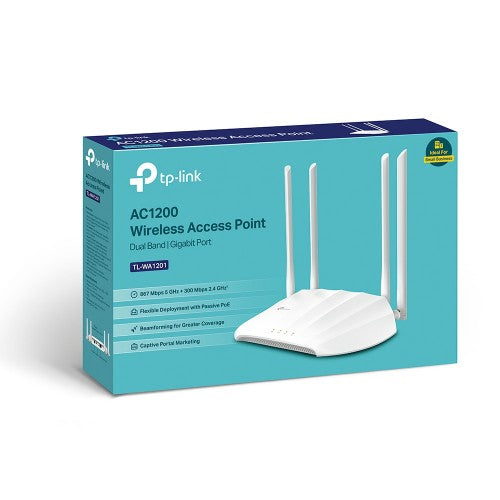

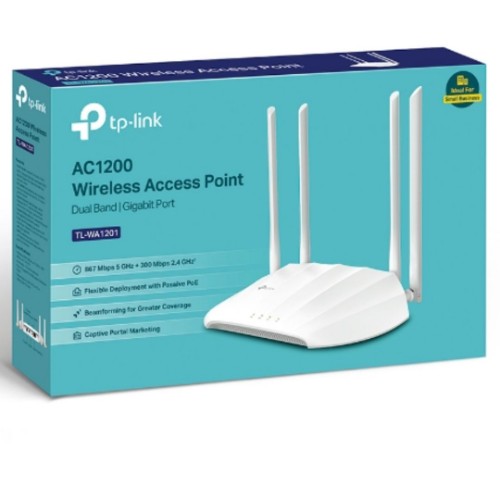

TP-Link TL-WA1201 wireless access point 867 Mbit/s White Power over Ethernet (PoE)

AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Multiple Modes,

Key Features

• AC1200 Dual-Band Wi-Fi – Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz
• Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
• Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs
• MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
• Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
• Captive Portal – Offers a designed portal page for heightened security and marketing

Description

TP-Link TL-WA801N 300Mbps Wireless N Access Point
• AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
• Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
• Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
• MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
• Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
• Captive Portal – Offers a designed portal page for heightened security and marketing.

HARDWARE FEATURES
Interface 1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 12V/1.5A
Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H ) 225×145.5×37 in (400×255×72 mm)
Antenna Type 4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity 5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
FCC: <30dBm(2.4GHz&5GHz)
Wireless Modes Access Point, Range Extender, Client, Multi-SSID
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP Server, DHCP Client List
Quality of Service WMM
Advanced Functions Captive Portal
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Access

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Auto Wireless Distribution System (WDS)	Yes
On/off switch	Yes
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Universal Plug and Play (UPnP)	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Transmitting power (FCC)	30 dBm
Transmitting power (CE)	20 - 23 dBm
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Virtual LAN features	Multicast VLAN
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Security
Auto Wireless Distribution System (WDS)	Yes
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Access Control List (ACL)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Protocols
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Output voltage	12 V
Output current	1.5 A
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE
Design
Placement	Table
On/off switch	Yes
Reset button	Yes
Product colour	White
WPS push button	Yes
Antenna
Antenna type	External
Antennas quantity	4
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Certificates
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Software
Access Control List (ACL)	Yes
Weight & dimensions
Width	225 mm
Depth	145.5 mm
Height	37 mm
Package width	400 mm
Package depth	255 mm
Package height	69 mm
Package weight	860 g
Packaging data
Quick start guide	Yes
PoE adapter included	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Package width	400 mm
Package depth	255 mm
Package height	69 mm
Package weight	860 g
Packaging content
Quick start guide	Yes
PoE adapter included	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
System requirements
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Sustainability
Sustainability compliance	Yes
Other features
WPS push button	Yes
Logistics data
Quantity per pack	1 pc(s)
