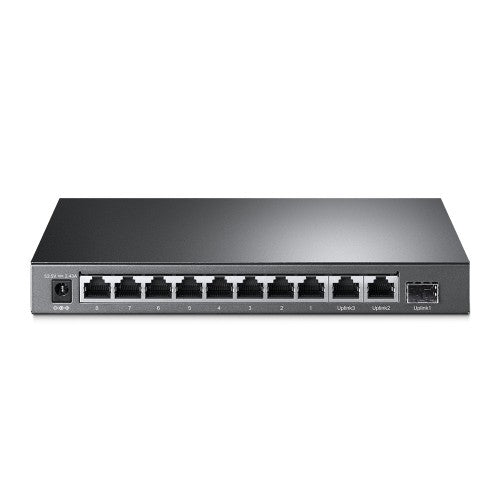

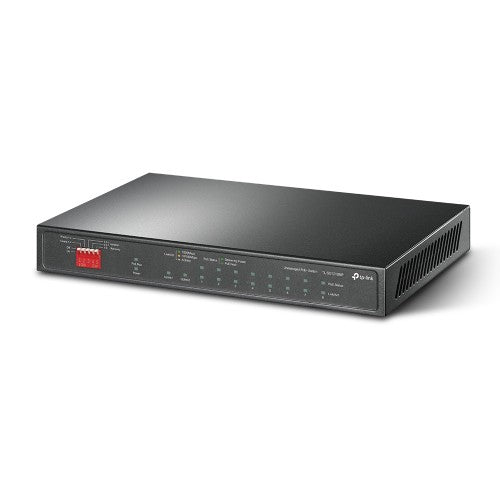

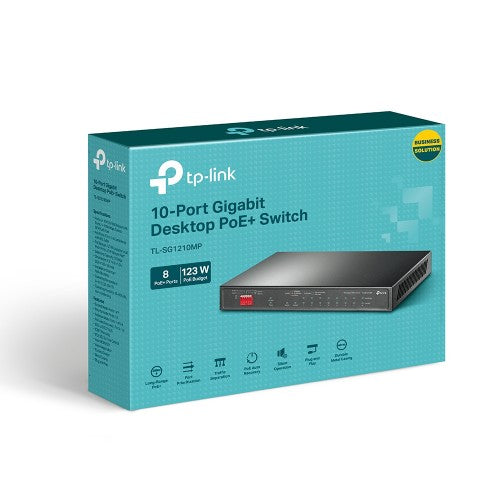

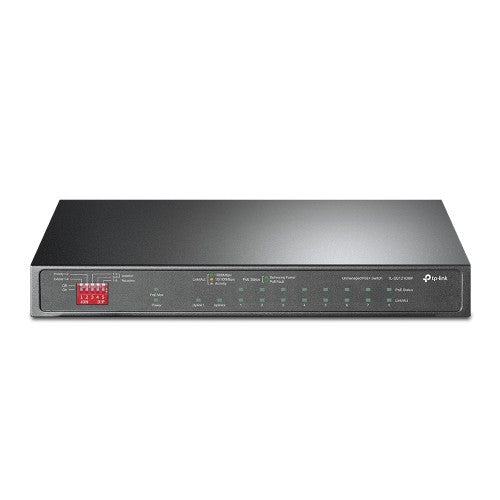

TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-LINK

TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Read reviews
SKU: TL-SG1210MP
Your price $199.58
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

TP-Link TL-SG1210MP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Description

TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)

Specifications

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 9
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Combo SFP ports quantity 1
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
Network
Cable types supported Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
Flow control support Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Data transmission
MAC address table 4000 entries
Switching capacity 20 Gbit/s
Store-and-forward Yes
Packet buffer memory 14.88 MB
Design
Rack mounting No
Product colour Black
LED indicators Yes
Certification CE, FCC
Performance
Fanless Yes
Packet buffer memory 14.88 MB
Auto-negotiation Yes
Harmonized System (HS) code 85176990
Power
Power consumption (max) 141.4 W
Input voltage 53.5 V
Input current 2.43 A
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 123 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 482.17 BTU/h
Weight & dimensions
Width 209 mm
Depth 126 mm
Height 26 mm
Packaging content
Quick start guide Yes
Packaging data
Package width 240 mm
Package depth 315 mm
Package height 70 mm
Package weight 1.41 kg
Quick start guide Yes
Technical details
Harmonized System (HS) code 85176990
Certificates
Certification CE, FCC
Other features
Input voltage 53.5 V
Logistics data
Harmonized System (HS) code 85176990
Brand
TP-LINK
SKU
TL-SG1210MP
