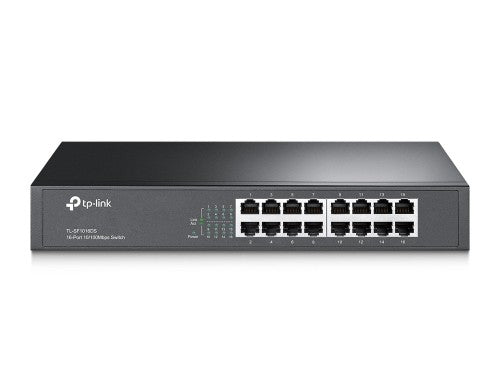

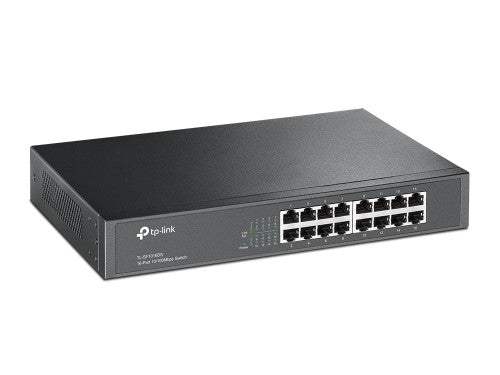

16-Port 10/100Mbps Desktop/Rackmount Switch
Key Features
- 16 10/100M RJ45 ports
- Green Ethernet technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 13-inch steel case
Description
What This Product DoesThe 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green TechnologyThis new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.
High PerformanceThe rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
Easy to UseThe auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Fast Ethernet (copper) ports quantity |
16 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
| Network |
|---|
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
3.2 Gbit/s |
| Throughput |
2.38 Mpps |
| Store-and-forward |
Yes |
| Packet buffer memory |
2 MB |
| Security |
|---|
| Static port security |
Yes |
| Protocols |
|---|
| Supported network protocols |
TCP/IP |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
No |
| Product colour |
Black |
| Form factor |
1U |
| Housing material |
Metal |
| Number of fans |
0 fan(s) |
| Redundant fans support |
Yes |
| Certification |
FCC, RoHS |
| Performance |
|---|
| Fanless |
Yes |
| Stackable |
No |
| Packet buffer memory |
2 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power consumption (max) |
2.06 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
7.03 BTU/h |
| Weight & dimensions |
|---|
| Width |
294 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Rubber feet |
Yes |
| Packaging data |
|---|
| Rubber feet |
Yes |
| Package width |
250 mm |
| Package depth |
400 mm |
| Package height |
80 mm |
| Package weight |
1.99 kg |
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Certification |
FCC, RoHS |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Other features |
|---|
| Ethernet LAN data rates |
10,100 Mbit/s |
