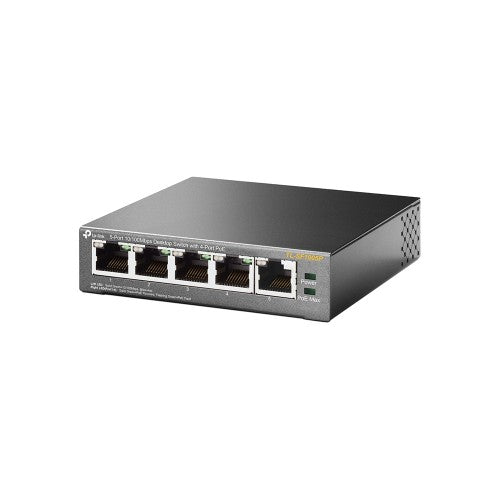

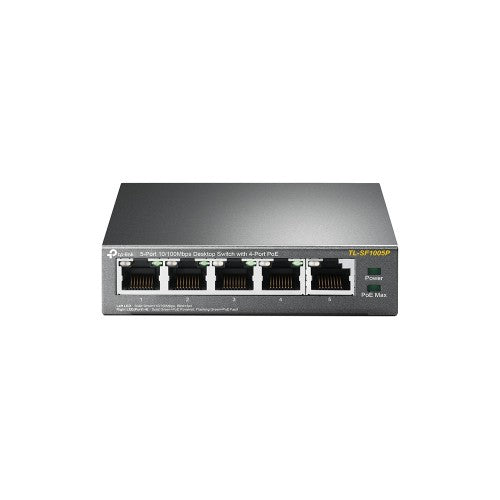

TP-Link TL-SF1005P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

5x 10/100Mbps RJ-45, PoE, 1 Gbps, 99.8x98x25 mm

Key Features

• 5 10/100Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• Supports PoE Power up to 15.4W for each PoE port
• Supports PoE Power up to 58W for all PoE ports
• Requires no configuration and installation

Description

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.3af, IEEE 802.3x
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Store-and-forward	Yes
Design
Rack mounting	No
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Power
Power consumption (max)	63.51 W
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	58 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	5.73 BTU/h
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging content
User guide	Yes
Packaging data
Package type	Box
User guide	Yes
Performance
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
