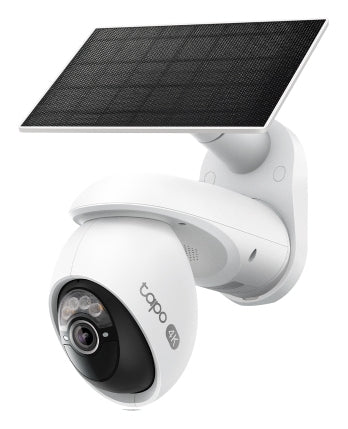

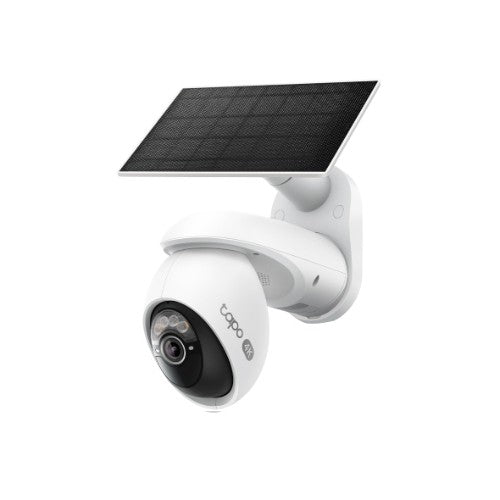

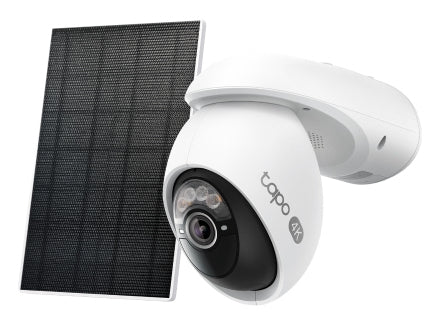

1/2.7", CMOS, 4K 8MP (3840 × 2160 px), 15/20 fps, Wi-Fi, 10000 mAh, 185 x 147 x 75 mm
Key Features
- 4K Ultimate Clarity: The camera features 4K 8MP resolution and 18× digital zoom for superior clarity.
- Free Person/Pet/Vehicle Detection: The camera identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.
- 360° AI Tracking: The camera provides 360° coverage and accurately identifies and tracks people, pets, and vehicles.
- Solar Charging, Maintenance-Free: Effortlessly monitor your space wirelessly from any location, liberating yourself from outlet limitations.
- Starlight Color Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.
- 2.4/5 GHz Connection: Connect the camera to 5 GHz for faster speed or 2.4 GHz for longer distance.
Description
Smart AI identifies people, pets, and vehicles while only sending you alerts when truly needed. Enhance person detection accuracy to 96%, reducing false alerts mistaking person-shape objects for people.
The camera provides 360° coverage and tracks people, pets, and vehicles with accuracy.
The camera provides 360° coverage and tracks people, pets, and vehicles with accuracy.
Engineered for Weather Resistance
Rain or shine, TC92 KIT is always ready. With an IP65 rating, it can withstand even the hardest weather conditions.
Specifications
| Performance |
|---|
| Type |
IP security camera |
| Connectivity technology |
Wireless |
| Placement supported |
Outdoor |
| Wide Dynamic Range (WDR) |
Yes |
| Certification |
CB, CE, FCC, DOE, CEC, RCM, KC, JFR,VCCI,NCC, BSMI, NTRA |
| Built-in light |
Yes |
| Design |
|---|
| Weatherproof |
Yes |
| Form factor |
Bulb |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| International Protection (IP) code |
IP65 |
| Camera |
|---|
| Lens viewing angle, horizontal |
88° |
| Lens viewing angle, vertical |
45° |
| Lens viewing angle, diagonal |
105° |
| Progressive scan |
Yes |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Lens system |
|---|
| Number of lenses |
1 |
| Maximum aperture number |
1.6 |
| Zoom capability |
Yes |
| Digital zoom |
18x |
| Fixed focal length |
4 mm |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
12 m |
| LED type |
IR |
| Infra-red wavelength |
850 nm |
| Video |
|---|
| Noise reduction |
Yes |
| Image quality adjustment |
DNR |
| Maximum resolution |
3840 x 2160 pixels |
| Frame rate |
20 fps |
| Total megapixels |
8 MP |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Audio system |
2-way |
| Number of microphones |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Live view |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
512 GB |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Microphone in |
Yes |
| Connectivity technology |
Wireless |
| Security |
|---|
| Video motion detection |
Yes |
| Security algorithms |
SSL/TLS, WPA, WPA2-PSK |
| Built-in siren |
Yes |
| Human and vehicle targets classification |
Yes |
| Siren noise level |
93.3 dB |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power source type |
Battery, Solar |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
1000 mAh |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Number of batteries supported |
1 |
| Battery |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
1000 mAh |
| Number of batteries supported |
1 |
| Certificates |
|---|
| Certification |
CB, CE, FCC, DOE, CEC, RCM, KC, JFR,VCCI,NCC, BSMI, NTRA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 45 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
0 - 90% |
| System requirements |
|---|
| Mobile operating systems supported |
Android 7.0, iOS 12 |
| Weight & dimensions |
|---|
| Width |
185 mm |
| Depth |
147 mm |
| Height |
75 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Other features |
|---|
| Ambient light sensor |
Yes |
