TP-Link Tapo TL-WA850RE network extender Network repeater White 10, 300 Mbit/s

3W, RJ-45, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, 2.4GHz, WPA, WEP

Description

TP-Link TL-WA850RE N300 Universal WiFi Range Extender 2.4GHz (300Mbps) 1x100Mbps LAN 802.11bgn 2x OnBoard antennas Mini size wall-mounted

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Easily expand wireless coverage at a push of Range Extender button
Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

HARDWARE FEATURES
Plug Type EU, UK, US

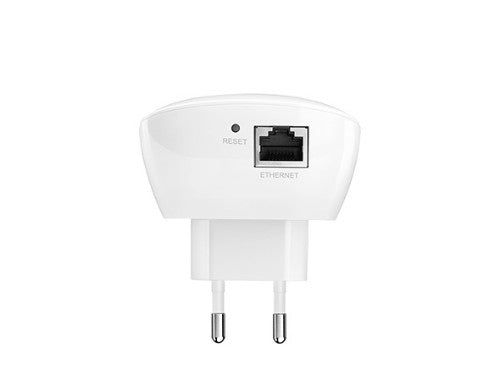

Interface 1 * 10/100M Ethernet Port (RJ45)
Button RE (Range Extender) Button, Reset Button
Power Consumption About 3W
Antenna 2 * internal
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
WIRELESS FEATURES
Frequency 2.4~2.4835GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power < 20 dBm (EIRP)
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification CE, RoHS
Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Specifications

Performance
Ethernet LAN data rates	10,300 Mbit/s
Type	Network repeater
Data transfer rate	300 Mbit/s
Antenna
Transmitting power (CE)	20 dBm
Network
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Host interface	RJ-45
Design
Product colour	White
Power
Power consumption (typical)	3 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	75.2 mm
Depth	65.8 mm
Height	110 mm
Sustainability
Sustainability compliance	Yes
Technical details
Ethernet LAN data rates	10,300 Mbit/s
Type	Network repeater
Data transfer rate	300 Mbit/s
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Colour
Product colour	White
Certificates
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
