3W, RJ-45, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, 2.4GHz, WPA, WEP
Description

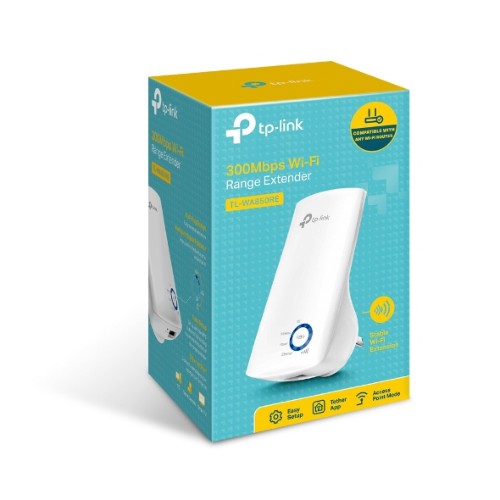

TP-Link TL-WA850RE N300 Universal WiFi Range Extender 2.4GHz (300Mbps) 1x100Mbps LAN 802.11bgn 2x OnBoard antennas Mini size wall-mounted
Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Easily expand wireless coverage at a push of Range Extender button
Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
HARDWARE FEATURES
Plug Type EU, UK, US
Interface 1 * 10/100M Ethernet Port (RJ45)
Button RE (Range Extender) Button, Reset Button
Power Consumption About 3W
Antenna 2 * internal
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
WIRELESS FEATURES
Frequency 2.4~2.4835GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power < 20 dBm (EIRP)
Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification CE, RoHS
Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Specifications
| Performance |
|---|
| Ethernet LAN data rates |
10,300 Mbit/s |
| Type |
Network repeater |
| Data transfer rate |
300 Mbit/s |
| Antenna |
|---|
| Transmitting power (CE) |
20 dBm |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms |
WEP, WPA-PSK, WPA2-PSK |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Host interface |
RJ-45 |
| Design |
|---|
| Product colour |
White |
| Power |
|---|
| Power consumption (typical) |
3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
75.2 mm |
| Depth |
65.8 mm |
| Height |
110 mm |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Ethernet LAN data rates |
10,300 Mbit/s |
| Type |
Network repeater |
| Data transfer rate |
300 Mbit/s |
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
White |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
