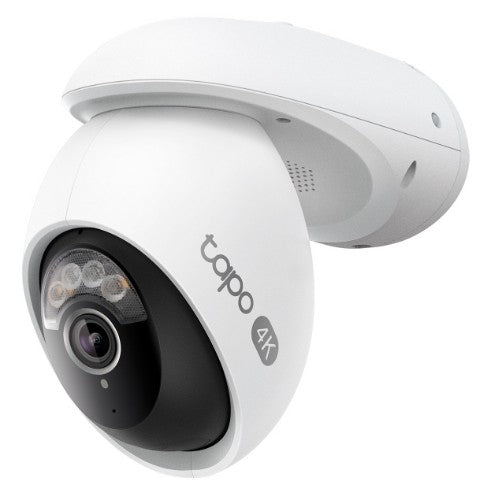

TP-Link Tapo TC46 security camera Spherical IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

4K 8MP (3840 × 2160 px), IP66, 360°, 1/27” Progressive Scan CMOS Starlight Sensor, Night Vision

Key Features

• 4K Ultimate Clarity: The camera features 4K 8MP resolution for superior clarity with upgraded image sensor, processor and lens
• Local Facial Recognition: The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification
• Wi-Fi 6 Dual-Band Connection: Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability
• Starlight Color Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights
• Free Person/Pet/Vehicle Detection: Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications
• Flexible Storage Options: Choose from local microSD† storage up to 512GB or the secure Tapo Care‡ cloud service for additional peace of mind
• IP66 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios

Description

4K: Unmatched Clarity, Extended Range
Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, human faces and moving objects.

Zoom In, See More
Equipped with 18x digital zoom and an F1.6 aperture, TC46 captures sharper details and high-quality recordings to enable precise detection with the ability to magnify images for remarkable clarity.

Accurate Facial Recognition, Easy Identification, Local AI Processing
The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification, reducing overall notifications to the ones that matter. All facial data is processed locally without cloud uploads, ensuring privacy and security.

Vibrant & Detailed Night Vision
Capture colorful details even in darkness with spotlights and a starlight sensor. TC46 also offers a stealthy IR black and white mode and a smart mode that automatically switches to color when a person is detected.

Wi-Fi 6 Dual-Band Connectivity: Faster & More Flexible
Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth scenarios.The 5 GHz connection△ offers faster speed, while 2.4 GHz provides longer distance. Ethernet networking is also supported.

Solid Defense System with Custom Alarms
Ward off intruders with sound and light alarms you can personalize: record custom audio and set your preferred spotlight brightness.

Secure Local Storage
Up to 512BG of free local storage equals 388 hours of 4K video storage. Secure your microSD card† with a password through the Tapo app for enhanced privacy protection.

Tapo Care Cloud Service
Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with Tapo Care‡ cloud services.

Unified Video Management
With Tapo H500*, enjoy ample local storage up to 16TB.

Enhanced Security with User-Friendly Features
Engineered for Weather Resistance
The IP66-rated TC46 is always ready to protect, come rain, snow or shine.

Two-Way Talk
Engage in real-time conversations with the two-way audio feature, designed for exceptional sound clarity.

Pair with Smart Assistants
Use voice commands with Amazon Alexa and Google Assistant for hands-free control.

Easy Setup & Installation
Tapo App: Bluetooth Onboarding
Use Bluetooth to easily onboard the camera with the Tapo App. Wi-Fi onboarding is also available.

Mounting Installation
Use the included mounting bracket and screws to effortlessly install onto walls.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired & Wireless
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Virtual assistant	Amazon Alexa & Google Assistant
Built-in light	Yes
Design
Weatherproof	Yes
Form factor	Spherical
Product colour	Black, White
Mounting type	Ceiling/Wall/Pole
Protection features	Dust resistant, Heat resistant, Rain proof, Snow resistant, Weather resistant
LED indicators	Yes
International Protection (IP) code	IP66
Camera
Field of view (FOV) angle	105°
Tilt angle range	0 - 53°
Pan range	0 - 326°
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	88°
Lens viewing angle, vertical	45°
Lens viewing angle, diagonal	105°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 27 mm (1 / 27")
Lens system
Number of lenses	1
Maximum aperture number	1.6
Zoom capability	Yes
Digital zoom	18x
Fixed focal length	4 mm
Night vision
Night vision	Yes
LED type	IR
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Image quality adjustment	DNR
Maximum resolution	3840 x 2160 pixels
Video formats supported	H.264
Supported graphics resolutions	2880 x 1620
Supported video modes	1620p
Frame rate	25 fps
Total megapixels	8 MP
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Network
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Works with the Google Assistant	Yes
Works with Amazon Alexa	Yes
Live view	Yes
Channel bandwidth	2400 MHz
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Built-in HDD	No
Maximum memory card size	512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired & Wireless
Security
Alert notification type	Push notification, Snapshot alert message
Intelligent Video Surveillance (IVS) system features	Human detection, Line crossing detection, Moving object, Pet detection, Vehicle detection
Video motion detection	Yes
Security algorithms	128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3
Active tampering alarm	Yes
Built-in siren	Yes
Siren noise level	99 dB
Management features
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	AC, DC
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (typical)	3.9 W
Power consumption (max)	7.41 W
DC output voltage	9
DC output current	0.85 A
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Package type	Box
Width	147.4 mm
Depth	74.7 mm
Height	165.4 mm
Packaging data
Package type	Box
Packaging content
Number of cameras	1
Screws included	Yes
Package type	Box
Mounting kit	Yes
Mounting brackets included	Yes
Manual	Yes
Packaging content	TC43 Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Waterproof Cable Attachments Quick Start Guide
