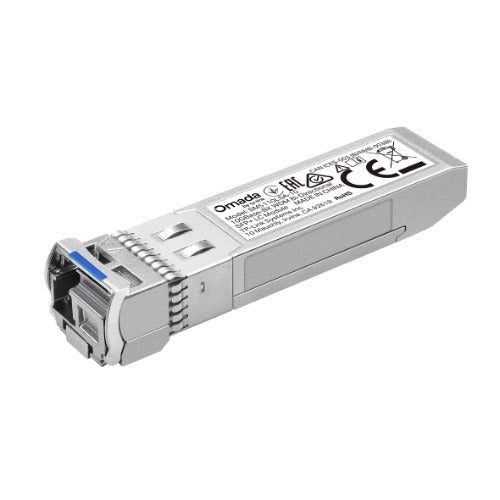

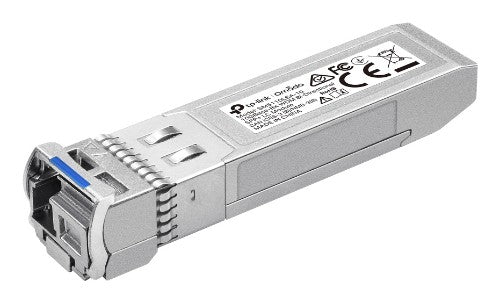

10GBase-BX, WDM Bi-Directional, SFP+, LC, TX: 1330 nm, RX: 1270 nm, 57 x 14 x 12 mm
Key Features
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
Description
The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Tx wavelength (max) |
1330 nm |
| Rx wavelength (max) |
1270 nm |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10312 Mbit/s |
| Fiber optic connector |
LC (UPC) |
| Networking standards |
IEEE 802.3ae |
| Maximum transfer distance |
10000 m |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Single-mode fiber (SMF) supported |
Yes |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10312 Mbit/s |
| Fiber optic connector |
LC (UPC) |
| Networking standards |
IEEE 802.3ae |
| Weight & dimensions |
|---|
| Width |
57 mm |
| Depth |
14 mm |
| Height |
12 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
