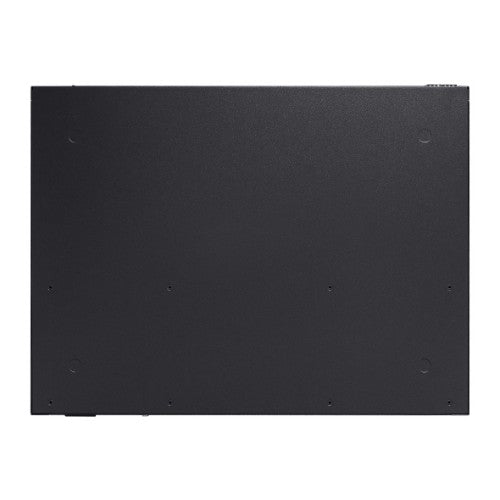

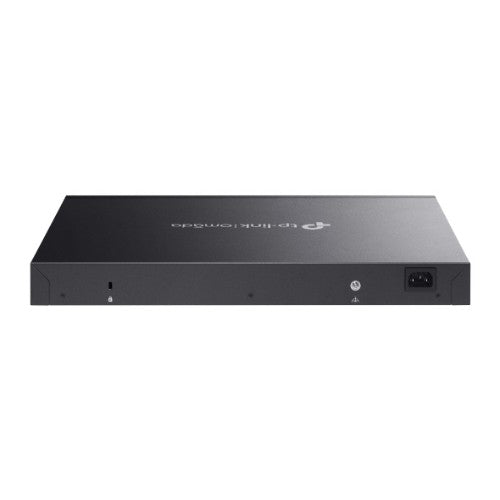

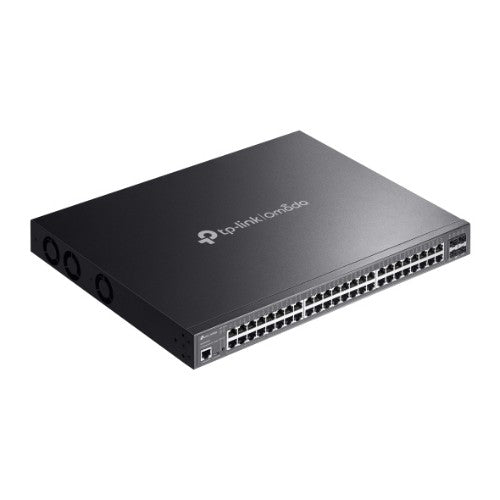

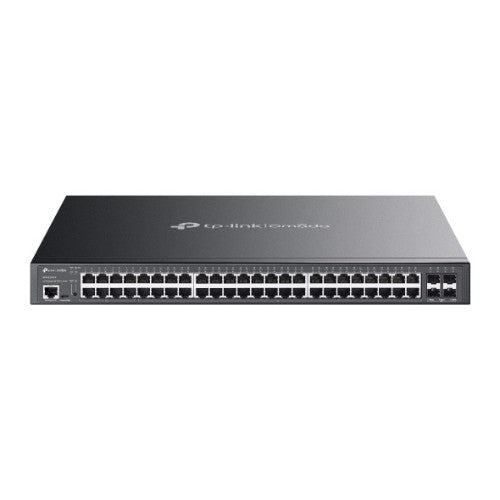

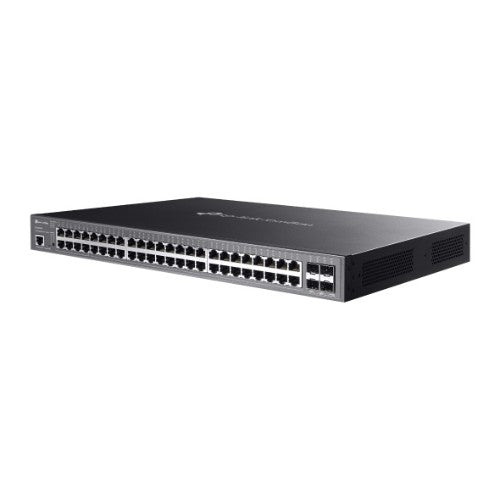

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-LINK

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Read reviews
SKU: SG3452XMPP
Your price $1,855.70
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

40x 10/100/1000 Mbps RJ45 PoE+, 4x 10G SFP+ Slots, 1x RJ45, 1x Micro-USB, 176 Gbps, MAC 16 K, 440 × 330 × 44 mm

Key Features

  • 4× 10 Gbps SFP+ slots
  • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • 750 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON

Description

Omada (SG3452XMPP) 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

Specifications

Management features
Reset button Yes
ARP inspection Yes
Switch layer L2+
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Configuring Location Settings (CLI) Yes
Cloud-managed Yes
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Console port RJ-45/Micro-USB
Power connector AC-in jack
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blocking Yes
VLAN support Yes
Spanning tree protocol Yes
Rate limiting Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
10G support Yes
IGMP snooping Yes
Data transmission
Jumbo frames 9000
MAC address table 16000 entries
Switching capacity 176 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Packet buffer memory 12 MB
Forwarding rate 130.9 Mpps
Security
IP-MAC-Port binding Yes
BPDU filtering/protection Yes
Authentication Auto VLAN, Guest VLAN
Static port security Yes
SSH/SSL support Yes
MAC address filtering Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support Yes
Design
Reset button Yes
Rack mounting Yes
Product colour Black
Form factor 1U
LED indicators Yes
Number of fans 3 fan(s)
Certification CE, FCC, RoHS
Power
Power consumption (max) 635.7 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power source AC
Power connector AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 40
Total Power over Ethernet (PoE) budget 750 W
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 2169.2 BTU/h
Virtual LAN features
VLAN support Yes
Weight & dimensions
Width 440 mm
Depth 330 mm
Height 44 mm
Packaging content
Quick start guide Yes
Cables included AC
Performance
Packet buffer memory 12 MB
Certificates
Certification CE, FCC, RoHS
Packaging data
Quick start guide Yes
Cables included AC
Brand
TP-LINK
SKU
SG3452XMPP
