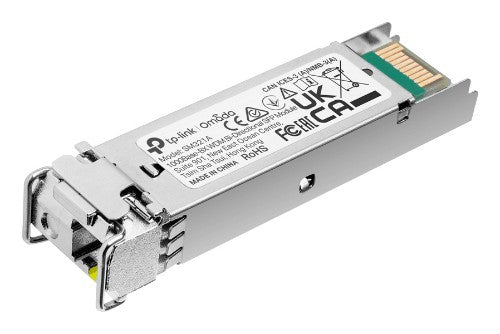

TP-Link Omada SFP 1000BASE-Sm MiniGBIC BX10D

TP-LINK

TP-Link Omada SFP 1000BASE-Sm MiniGBIC BX10D

Read reviews
SKU: SM321A
Your price $37.62
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

SFP 1000BASE-Sm MiniGBIC BX10D

Key Features

  • WDM Bi-Directional SFP Module
  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

Description

TP-Link´s SM321A(TL-SM321A) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.

Specifications

Performance
SFP transceiver type Fiber optic
Tx wavelength (max) 1550 nm
Rx wavelength (max) 1310 nm
Digital Diagnostics Monitoring (DDM) Yes
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
Maximum transfer distance 20000 m
Fiber cable diameters supported (core/cladding) 9/125 µm
Single-mode fiber (SMF) supported Yes
Product colour Silver
Hot-swap Yes
Features
Product colour Silver
Hot-swap Yes
Certification FCC, CE
Power
Input voltage 3.3 V
Certificates
Certification FCC, CE
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Minimum operating temperature 0 °C
Maximum operating temperature 70 °C
Network
SFP transceiver type Fiber optic
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
Weight & dimensions
Width 55.4 mm
Depth 14.6 mm
Height 12.9 mm
Package width 38 mm
Package depth 207 mm
Package height 38 mm
Package weight 110 g
Packaging content
Quantity per pack 1 pc(s)
User guide Yes
Packaging data
User guide Yes
Package width 38 mm
Package depth 207 mm
Package height 38 mm
Package weight 110 g
Logistics data
Quantity per pack 1 pc(s)
Brand
TP-LINK
SKU
SM321A
