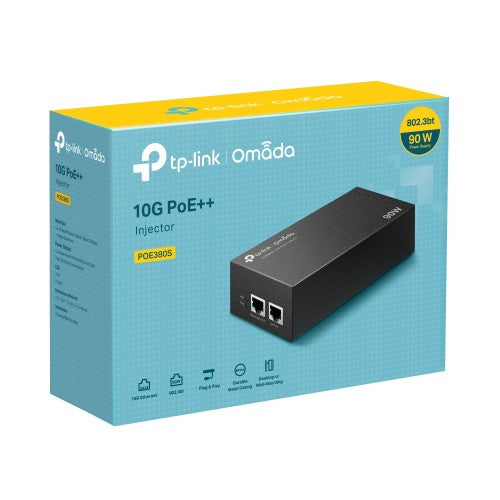

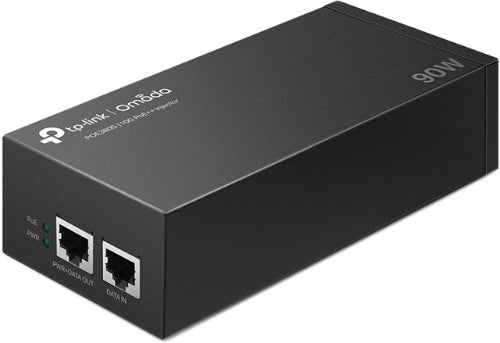

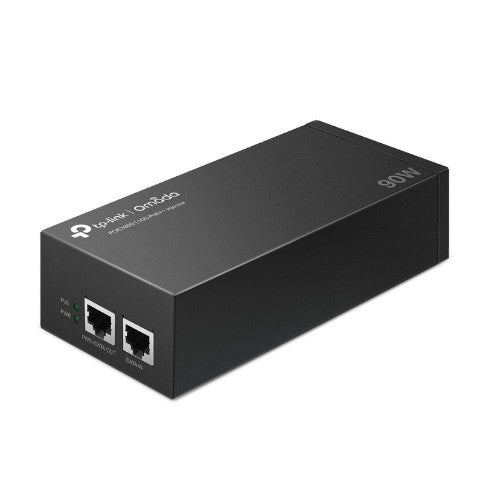

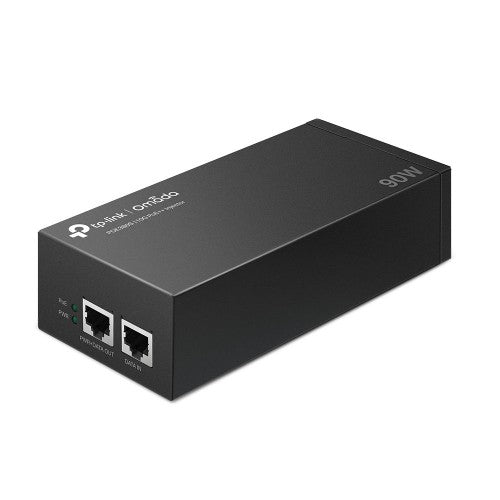

TP-Link Omada PoE++ Injector

TP-LINK

TP-Link Omada PoE++ Injector

SKU: POE380S
Your price $117.00
GST included · AUD

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock - Brand NEW
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

1 x 10 Gbps RJ45 In, 1x 10 Gbps RJ45 Out, 90 W max out, 155x70x42 mm

Key Features

  • 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
  • Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, no configuration required
  • Integrated power supply
  • Durable metal casing

Description

90W 10G PoE++ Injector
Unlocks peak performance for your 10G/Multi-Gig bandwidth and devices

10G Ports Ensure Faster Connection
Auto-negotiation for 6-speed (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps /10 Mbps)

Auto Detect the Required Power, Up to 90 W
Standard 802.3af/at/bt for Various Powered Devices

Specifications

Network
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,2500,10000 Mbit/s
Ethernet interface type 10 Gigabit Ethernet
Cabling technology 1000/10000
Features
Product colour Black
LED indicators PoE, Power
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u

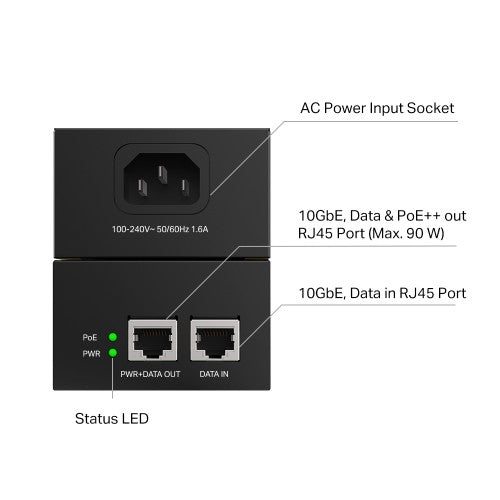

Ports & interfaces
RJ-45 input ports 1
RJ-45 output ports 1
Power
Input current 1.6 A
AC adapter input voltage 100 - 240 V
AC adapter frequency 50 - 60 Hz
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 155 mm
Depth 70 mm
Height 42 mm
Packaging content
Quick installation guide Yes
Number of products included 1 pc(s)
Technical details
Power over Ethernet (PoE) Yes
Number of products included 1 pc(s)
Input current 1.6 A
Ethernet LAN data rates 10,100,2500,10000 Mbit/s
Ethernet interface type 10 Gigabit Ethernet
Sustainability compliance Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators PoE, Power
Brand
TP-LINK
SKU
POE380S
