TP-Link Omada PoE+ Extender Network repeater Black 10, 100, 1000 Mbit/s

2x 10/100/1000 Mbps Auto-Negotiation RJ45, 30W Out, PoE, IP68, 2× Link/Act, Black, 221.7 × 31 × 31.5mm

Key Features

• 2× 10/100/1000 Mbps RJ45 ports
• Compliance with 802.3af/at devices
• Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
• Extends a PoE/PoE+ network connection up to 500 m (250 m+250 m)* from the PoE power sourcing equipment under 10Mbps mode
• Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
• Plug-and-Play, requires no configure

Description

What This Product Does

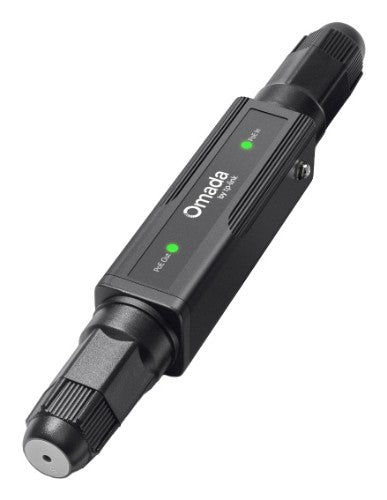

The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m* for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.

Specifications

Performance
International Protection (IP) code	IP68
Plug and Play	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Type	Network repeater
Maximum transfer distance	250 m
Power over Ethernet (PoE)	Yes
Data transfer rate	1000 Mbit/s
Cable types supported	Cat3, Cat5, Cat5e
Auto-negotiation	Yes
Network
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Ports & interfaces
DC-in jack	No
Ethernet LAN (RJ-45) ports	2
Design
LED indicators	ACT, Link
Product colour	Black
Quantity per pack	1 pc(s)
Power
Power over Ethernet (PoE)	Yes
Maximum output power	30 W
Operational conditions
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 90%
Storage relative humidity (H-H)	15 - 90%
Weight & dimensions
Width	221.7 mm
Depth	31 mm
Height	31.5 mm
Packaging content
Quick start guide	Yes
Technical details
International Protection (IP) code	IP68
Plug and Play	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Type	Network repeater
Maximum transfer distance	250 m
Power over Ethernet (PoE)	Yes
Data transfer rate	1000 Mbit/s
Cable types supported	Cat3, Cat5, Cat5e
LED indicators	ACT, Link
Auto-negotiation	Yes
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, KC
Colour
Product colour	Black
Certificates
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, KC
