Media conv. 1000BASE-SX/LX/LH
Key Features
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
Description

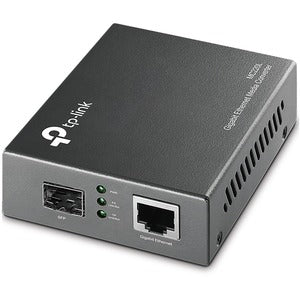

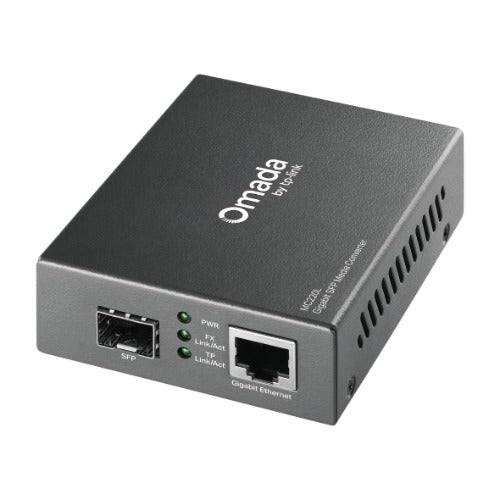

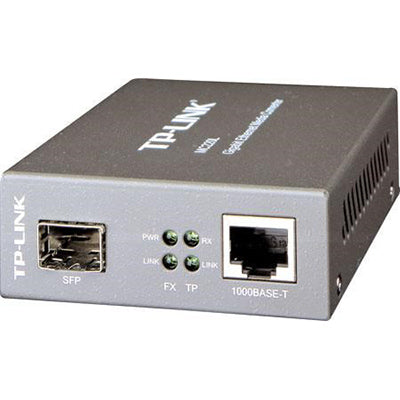

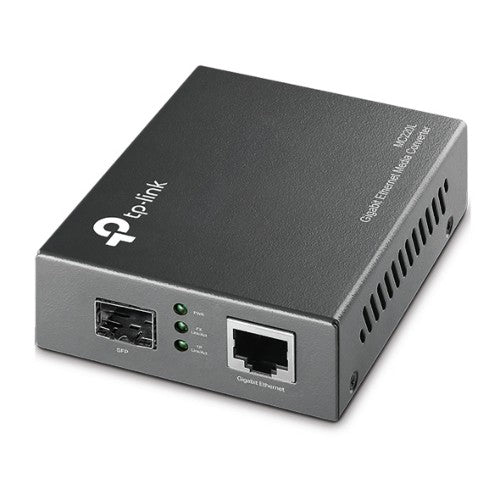

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.
Specifications
| Network |
|---|
| Cable types supported |
Cat5, Cat5e, Cat6 |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Fiber optic connector |
SFP |
| Performance |
|---|
| Maximum transfer distance |
10000 m |
| Fiber mode structure |
Multi-mode, Single-mode |
| Features |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP |
| Power |
|---|
| Power consumption (max) |
1.7 W |
| Weight & dimensions |
|---|
| Width |
94 mm |
| Depth |
73 mm |
| Height |
27 mm |
| Package width |
65 mm |
| Package depth |
204 mm |
| Package height |
65 mm |
| Package weight |
440 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging data |
|---|
| Package width |
65 mm |
| Package depth |
204 mm |
| Package height |
65 mm |
| Package weight |
440 g |
| Design |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
