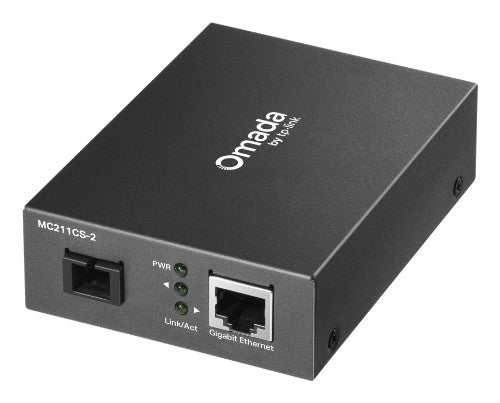

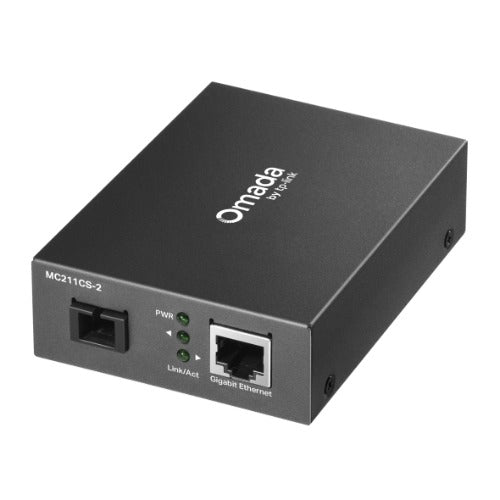

Omada Gigabit WDM Media Converter, 1× Gigabit SC/UPC Fiber Port, 1× 10/100/1000 Mbps RJ45 Port
Key Features
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 2 km
Description
MC211CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Specifications
| Network |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Fiber optic connector |
SC/UPC |
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
20000 m |
| Fiber mode structure |
Single-mode |
| Features |
|---|
| Internal |
No |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SC/UPC |
| Power |
|---|
| Input voltage |
9 V |
| Input current |
0.6 A |
| Weight & dimensions |
|---|
| Width |
94.5 mm |
| Depth |
73 mm |
| Height |
27 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging content |
|---|
| Manual |
Yes |
| Design |
|---|
| Internal |
No |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
