1000Mbps, Single-Mode, 1310 nm, 15000 m
Key Features
- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 9.3 miles (15km)
Description

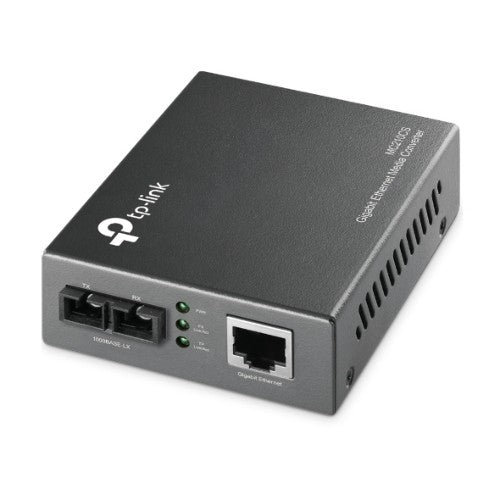

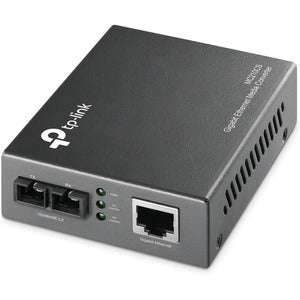

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).
Specifications
| Network |
|---|
| Cable types supported |
Cat5, Cat5e |
| Copper ethernet cabling technology |
1000BASE-LX, 1000BASE-T |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type |
Gigabit Ethernet |
| Auto MDI/MDI-X |
Yes |
| Fiber optic connector |
SC |
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
15000 m |
| Fiber mode structure |
Single-mode |
| Features |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SC |
| Power |
|---|
| Power consumption (max) |
1.8 W |
| Weight & dimensions |
|---|
| Width |
95 mm |
| Depth |
73 mm |
| Height |
27 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Design |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
