Omada 4G Cat4 N300 Outdoor PoE Gateway
Key Features
- 4G Cat4 up to 300 Mbps
- Wi-Fi 4, Support 150 Mbps on 2.4 GHz†

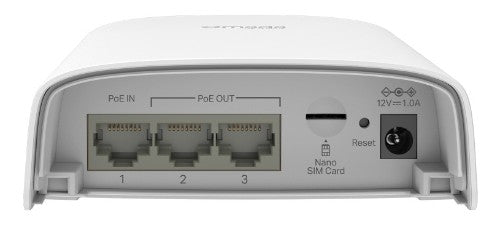

- 3× Gigabit WAN/LAN Ports (2× PoE Out, 1× PoE In)
- 1× Nano SIM Card Slot
- 802.3at/bt PoE/Passive PoE/DC Power Supply
- IP55 Weatherproof & 4 kV Lightning Protection
- Load Balancing between 4G and Ethernet WAN
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE§ VPN
- Centralized Cloud Management
Description
TP-Link ER603WP-4G-Outdoor Omada 4G Cat4 N300 Outdoor PoE Gateway
• 4G Cat4 up to 300 Mbps*
• Wi-Fi 4, Support 150 Mbps on 2.4 GHz†
• 3× Gigabit WAN/LAN Ports (2× PoE Out, 1× PoE In)
• 1× Nano SIM Card Slot
• 802.3at/bt PoE/Passive PoE/DC Power Supply
• IP55 Weatherproof & 4 kV Lightning Protection
• Load Balancing between 4G and Ethernet WAN
• IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE§ VPN
• Centralized Cloud Management△
Warranty Period: 3-Year
Specifications
| Design |
|---|
| LED indicators |
Status |
| Certification |
CE, RoHS |
| Mounting type |
Wall mounting |
| Product colour |
White |
| Features |
|---|
| Antenna type |
External |
| Short Message Service (SMS) |
Yes |
| Antennas quantity |
2 |
| Performance |
|---|
| Internal memory type |
DDR3 |
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Control display unit |
No |
| Certification |
CE, RoHS |
| Mounting type |
Wall mounting |
| Product colour |
White |
| Data transmission |
|---|
| Forwarding rate |
1419519 Mpps |
| Protocols |
|---|
| DHCP server |
Yes |
| Network |
|---|
| Networking standards |
IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Frequency band |
2.4 GHz |
| Wi-Fi |
Yes |
| Forwarding rate |
1419519 Mpps |
| Mobile network generation |
4G |
| Data network |
LTE |
| Downlink/uplink speed |
150/50 Mbit/s |
| Ports & interfaces |
|---|
| SIM card type |
NanoSIM |
| SIM card slot |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Reset button |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
10 W |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Weight & dimensions |
|---|
| Width |
100.4 mm |
| Height |
174.8 mm |
| Depth |
38.7 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 90% |
| Technical details |
|---|
| Antenna type |
External |
| Wi-Fi |
Yes |
| Short Message Service (SMS) |
Yes |
| Indication |
|---|
| LED indicators |
Status |
| Memory |
|---|
| Internal memory type |
DDR3 |
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Display |
|---|
| Control display unit |
No |
| Certificates |
|---|
| Certification |
CE, RoHS |
| Antenna |
|---|
| Antenna type |
External |
| Antennas quantity |
2 |
