TP-Link Omada Fusion 2.5G gateway/controller 2500, 10, 100, 1000 Mbit/s

2.5 Gbps, 1x RJ-45 WAN, 4x RJ-45 LAN/WAN, VPN, DHCP server, QoS, 2.51" display, 2 GB DDR4

Key Features

• License‑Free Cloud Management for Multi‑Site Work
• Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
• Enterprise‑Grade Performance: Quad-Core CPU, 5× 2.5G Ports, Up to 4‑WAN Load Balancing with Auto Failover, 2.1 Gbps-Class IDS/IPS Throughput
• Quick Troubleshooting via Touchscreen, Reducing On-Site Visits
• Secure Remote Network Access in One Click Away with Omada LightLink VPN
• Advanced Software Capabilities: App‑Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
• Flexible Mounting Options: Desktop, Wall-Mountable, Rack-Mountable

Description

Fusion Gateway at the Center of the Omada Networking Ecosystem
Gateway and controller integrated into a single device, delivering a unified solution that combines networking and centralized management at the core of the Omada networking ecosystem—ideal for single‑ and multi‑site small businesses.

Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion 2.5G via Bluetooth using the Omada App. Automatically discover and batch adopt all other Omada networking devices at once, saving time and simplifying IT deployment.

Quick Troubleshooting via Touchscreen,
Reducing On-Site Work

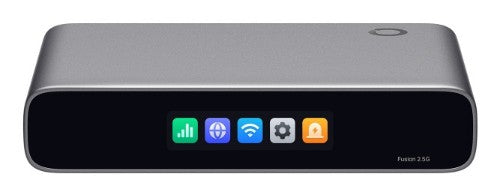

With an innovative 2.51-inch touchscreen, enjoy quick troubleshooting — all at your fingertips. Reduce on‑site work and save time with direct, on‑device monitoring.

Secure Remote Network Access, One Click Away
With Omada LightLink VPN, you can securely access your network from anywhere with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.

Advanced Software Capabilities for Secure and Intelligent Management
Simple Multi-Site Connectivity via Full Mesh SD-WAN
Connect up to 20 sites in minutes with direct inter-site links—simpler to deploy, smoother for multi-site networking.

App-Based Access Control
Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.

One-Click Auto QoS
Ensure critical traffic always gets priority, with one-click presets or full customization.

Content Filtering & Ad Blocking
Blocks unwanted sites and intrusive ads for a safer, cleaner experience.

Specifications

Design
LED indicators	LAN
Mounting type	Rack/Desktop/Wall
Product colour	Black, Grey
Enclosure material	Polycarbonate (PC)
Performance
Built-in processor	Yes
Number of processors installed	1
Internal memory type	DDR4
Internal memory	2048 MB
Display type	LCM
Control display unit	Yes
Mounting type	Rack/Desktop/Wall
Product colour	Black, Grey
Enclosure material	Polycarbonate (PC)
Data transmission
Static route	Yes
Protocols
DMZ support	Yes
DHCP server	Yes
Network
Networking standards	IEEE 802.1x
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	2500,10,100,1000 Mbit/s
VPN support	Omada LightLink VPN, WireGuard VPN, OpenVPN, IPsec VPN, SSL VPN, L2TP VPN, PPTP VPN
Security
VPN support	Omada LightLink VPN, WireGuard VPN, OpenVPN, IPsec VPN, SSL VPN, L2TP VPN, PPTP VPN
VLAN support	Yes
Security algorithms	SNMP, SNMPv2c, SNMPv3
Firewall security	Yes
Network address translation (NAT)	Yes
Access Control List (ACL)	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	5
Management features
Web-based management	Yes
Universal Plug and Play (UPnP)	Yes
Syslog	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Power
Output voltage	5 V
Output current	3 A
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	8.18 W
Electrostatic Discharge (ESD) protection	Yes
Electrostatic Discharge (ESD) protection (air)	8 kV
Electrostatic Discharge (ESD) protection (contact)	4 kV
Weight & dimensions
Weight	510 g
Width	160 mm
Height	31.5 mm
Depth	130 mm
Packaging content
Cables included	LAN (RJ-45)
Manual	Yes
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Technical details
Built-in processor	Yes
Number of processors installed	1
Manual	Yes
AC adapter included	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators	LAN
Memory
Internal memory type	DDR4
Internal memory	2048 MB
Display
Display type	LCM
Display diagonal	6.38 cm (2.51")
Control display unit	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Features
Built-in processor	Yes
Number of processors installed	1
