Flex Bridge 5, 12V DC, 802.3at/af PoE, IP66, IEEE 802.11 a/n/ac
Key Features
-
Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging: Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub.
-
Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles: Ideal for extending networks across buildings and remote locations.
-

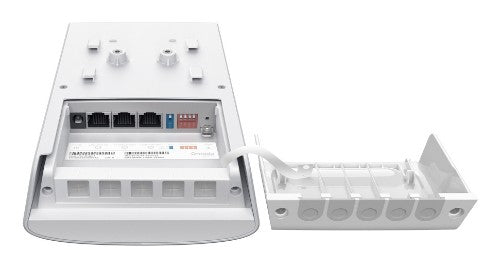

Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
-
Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
-

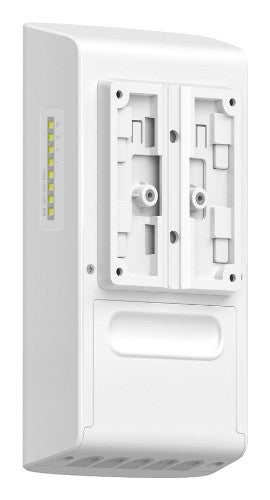

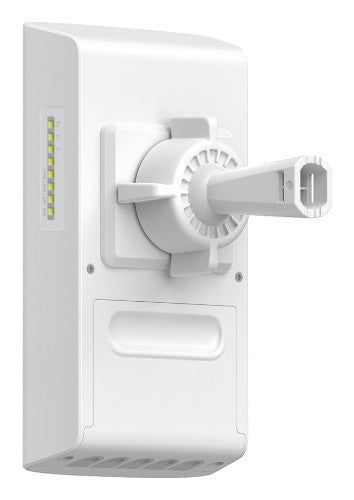

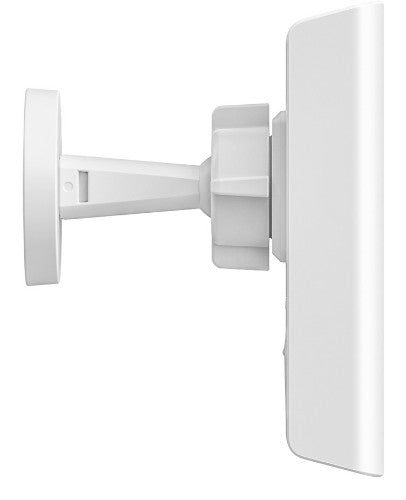

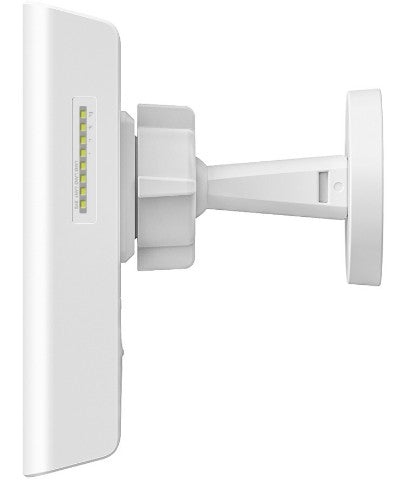

Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
-
Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.
-
Flexible Power Supply Options: Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.
-
App-Guided Alignment for Optimal Performance: Simply bridge alignment with real-time signal strength visualization on the Omada app.
-
Remote Monitoring with Standalone & SDN Management: Use the Omada app for easy on-site setup-no internet required. For added flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.
Description
Omada 5 GHz 867 Mbps Long-Range Connectivity for Indoors/Outdoors Wireless Flex Bridge
Role & DIP Switches for Simple PairingSeamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
Versatile Power Management: Integrated Edge
Power for Any ScenarioSupports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible
power supply via a PoE switch, the included passive PoE adapter, or solar power.
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
867 Mbit/s |
| Maximum transfer distance |
5000 m |
| Antenna |
|---|
| Antenna gain level (max) |
17 dBi |
| Antenna design |
Internal |
| Antenna type |
2x2 |
| Wireless LAN features |
|---|
| Frequency band |
5 GHz |
| Antenna gain level (max) |
17 dBi |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Antenna type |
2x2 |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Frequency band |
5 GHz |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
3 |
| Cabling technology |
10/100/1000Base-T(X) |
| Security |
|---|
| Security algorithms |
SNMP, SSH |
| Management features |
|---|
| Web-based management |
Yes |
| LED indicators |
Power |
| Features |
|---|
| Product type |
Network bridge |
| Reset button |
Yes |
| Network Time Protocol (NTP) client |
Yes |
| International Protection (IP) code |
IP66 |
| LED indicators |
Power |
| Product colour |
White |
| Mounting type |
Pole |
| Power |
|---|
| Power source type |
DC, PoE |
| DC input voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) voltage |
24 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Certification |
CE, FCC |
| Technical details |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
590 g |
| Width |
214.2 mm |
| Depth |
50.8 mm |
| Height |
119.8 mm |
