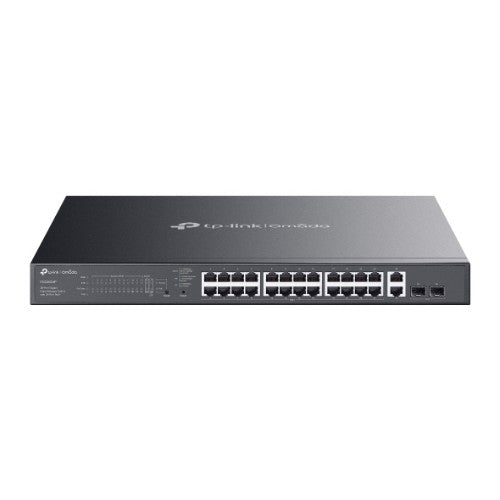

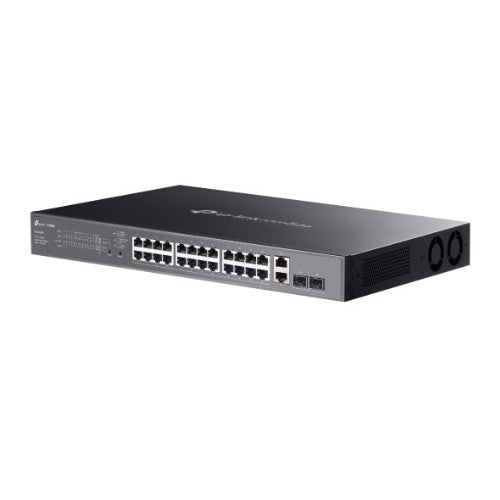

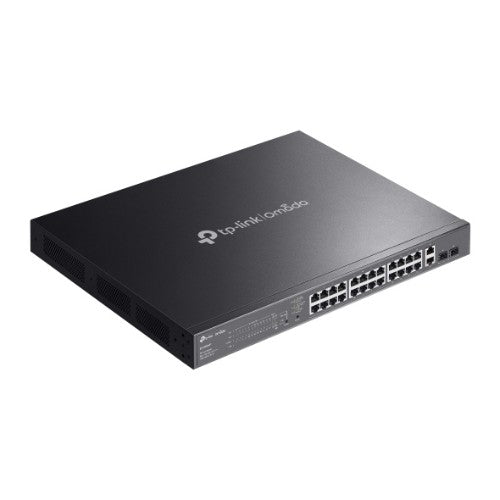

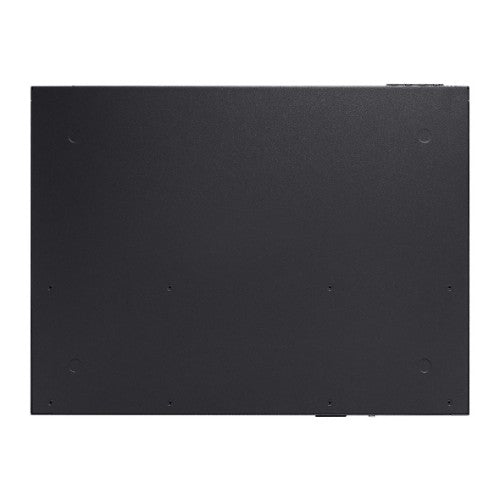

ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
Key Features
- 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Description
Omada Cloud Essentials — A Free and Easy Cloud-Based Network ManagementOmada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Unified static configuration |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
26 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs |
32 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Fast leave |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
15000 |
| MAC address table |
8000 entries |
| Switching capacity |
56 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4 MB |
| Forwarding rate |
41.66 Mpps |
| Number of VLANs |
32 |
| Security |
|---|
| IGMP snooping |
Yes |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| LED indicators |
Yes |
| Housing material |
Metal |
| Number of fans |
2 fan(s) |
| Certification |
FCC, CE, RoHS |
| Performance |
|---|
| Noise level |
46.2 dB |
| Flash memory |
64 MB |
| Firmware upgradeable |
Yes |
| Mean time between failures (MTBF) |
224143 h |
| Fanless |
No |
| Packet buffer memory |
4 MB |
| Power |
|---|
| Power consumption (max) |
454.8 W |
| Power supply included |
Yes |
| Surge protection voltage |
6 kV |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Surge protection |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
384 W |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
1546.15 BTU/h |
| Virtual LAN features |
|---|
| Number of VLANs |
32 |
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
330 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
