8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+), 64W, 158 × 100.7 × 25.4 mm
Key Features
- 8× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
- 64W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

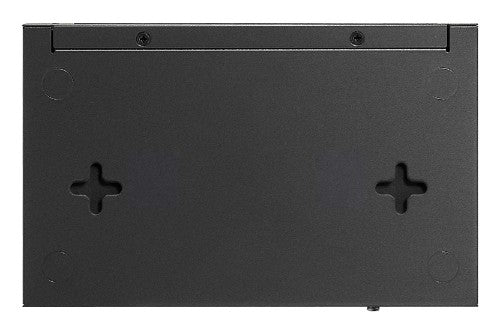

- Durable metal casing and desktop/wall mounting design
Description

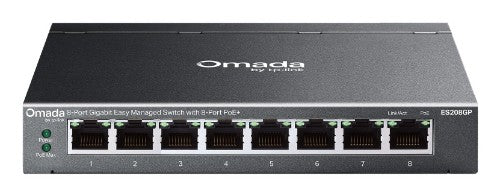

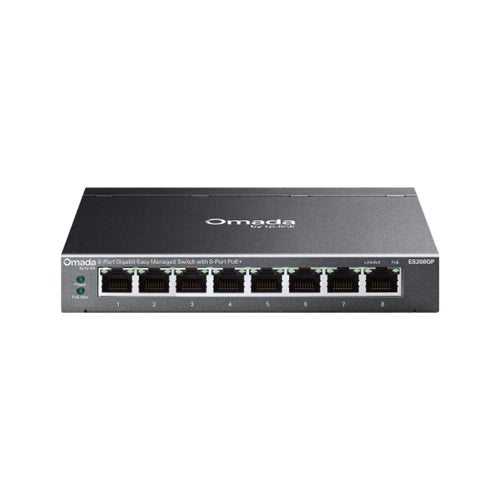

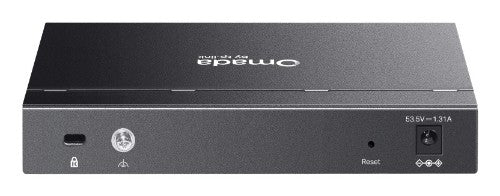

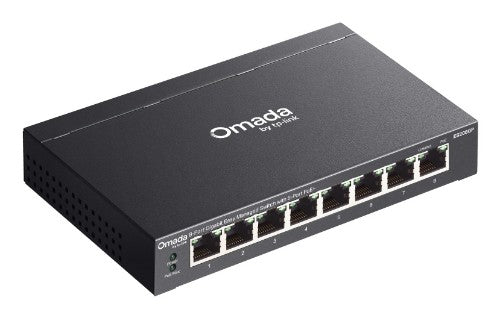

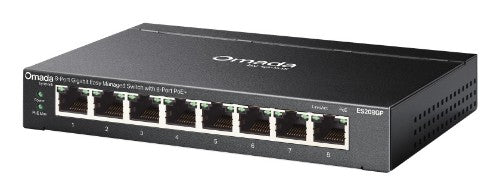

TP-Link ES208GP Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+
• 8× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
• 64W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Up to 250m PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design
Warranty Period: 5-Year
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping |
Yes |
| Optical fiber |
|---|
| Transmission distance (max) |
0.25 km |
| Data transmission |
|---|
| Jumbo frames |
15000 |
| MAC address table |
8000 entries |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
0.5 MB |
| Forwarding rate |
11.904 Mpps |
| Number of VLANs |
4000 |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Form factor |
DIN rail |
| LED indicators |
Yes |
| Power |
|---|
| Input current |
1.31 A |
| DC input voltage |
53 V |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
64 W |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Virtual LAN features |
|---|
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions |
|---|
| Width |
158 mm |
| Depth |
100.7 mm |
| Height |
25.4 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
Power |
| Performance |
|---|
| Packet buffer memory |
0.5 MB |
| Auto-negotiation |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Cables included |
Power |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
