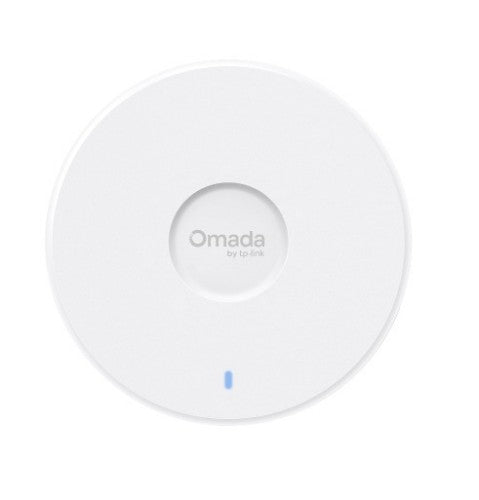

BE5000 Ceiling Mount Wi-Fi 7 Access Point
Key Features
- 5-Stream Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.
- 1× 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
- Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.
- Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming.
- More Connections and Wider Coverage: Supports 510+ concurrent connections** and covers up to 2,000 ft² (185 m²)* for reliable and extensive wireless connectivity.
Description
Optimized Wired Performance with 2.5G PoE+ PortWith a 2.5 Gigabit Ethernet Port, EAP727 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Specifications
| Performance |
|---|
| Full duplex |
Yes |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wireless isolation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Country of origin |
China |
| Maximum data transfer rate |
5012 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,25000 Mbit/s |
| Number of users |
510 user(s) |
| Web-based management |
Yes |
| VLAN support |
Yes |
| Reset button |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Number of WLAN connections (max) |
16 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11ax |
| Firmware upgradeable |
Yes |
| Channel bandwidth |
160 MHz |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Wi-Fi roaming |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Built-in processor |
Yes |
| Features |
|---|
| 6 GHz |
No |
| Full duplex |
Yes |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wireless isolation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Maximum data transfer rate |
5012 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,25000 Mbit/s |
| Number of users |
510 user(s) |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Number of WLAN connections (max) |
16 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11ax |
| Channel bandwidth |
160 MHz |
| Cabling technology |
10/100/1000/2500Base-T |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Transmitting power (FCC) |
27 dBm |
| Transmitting power (CE) |
30 dBm |
| Dynamic Frequency Selection (DFS) |
Yes |
| Fast roaming |
Yes |
| Duplex mode auto-negotiation |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Wi-Fi roaming |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4324 Mbit/s |
| Bluetooth Low Energy (BLE) |
Yes |
| BeamForming |
Yes |
| Spatial streams |
5 |
| Number of simultaneously connected devices (max) |
510 |
| Coverage area |
185 m² |
| Wireless meshing |
Yes |
| Maximum Tx power (2.4 GHz) |
20 dBmW |
| Maximum Tx power (5 GHz) |
30 dBmW |
| Number of guest networks (2.4 GHz) |
8 |
| Built-in processor |
Yes |
| Security |
|---|
| Number of SSID supported |
16 |
| Security algorithms |
WPA, WPA3, WPA2 |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Guest access |
Yes |
| Schedule access |
Yes |
| Protocols |
|---|
| Management protocols |
NMP v1, SNMP v2c, SNMP v3, SSH |
| Supported network protocols |
IPv4, IPv6, LLDP, mDNS |
| DHCP client |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Firmware upgradeable |
Yes |
| Command-line interface (CLI) |
Yes |
| Traffic statistics |
Yes |
| Cloud-managed |
Yes |
| Backup function |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Cabling technology |
10/100/1000/2500Base-T |
| Power |
|---|
| Power consumption (max) |
15.6 W |
| Input current |
1.5 A |
| Power supply |
18 W |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
12 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Country of origin |
China |
| Reset button |
Yes |
| LED indicators |
Yes |
| Product colour |
White |
| Antenna |
|---|
| Antenna type |
Internal |
| Antennas quantity |
5 |
| Antenna gain level (max) |
6 dBi |
| Antenna direction type |
Omni-directional |
| Antenna features |
Integrated antenna |
| Technical details |
|---|
| Compliance certificates |
CE, JRF, ICES |
| Wall mountable |
Yes |
| Ethernet LAN |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, JRF, ICES |
| Software |
|---|
| Access Control List (ACL) |
Yes |
| Dynamic Frequency Selection (DFS) |
Yes |
| Fast roaming |
Yes |
| Duplex mode auto-negotiation |
Yes |
| Weight & dimensions |
|---|
| Width |
160 mm |
| Depth |
160 mm |
| Height |
36.7 mm |
| Weight |
470 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating altitude |
0 - 2000 m |
| Non-operating altitude |
0 - 2000 m |
| Logistics data |
|---|
| Country of origin |
China |
| Quantity per pack |
1 pc(s) |
