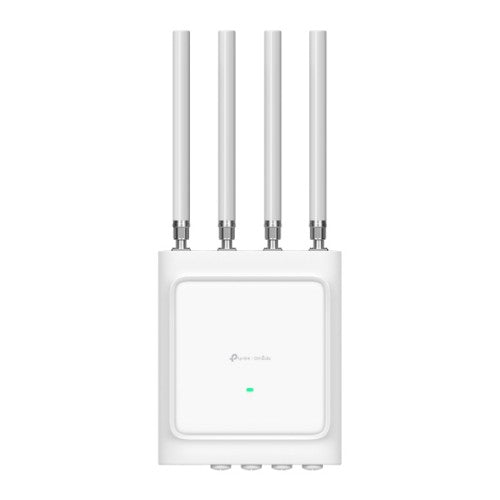

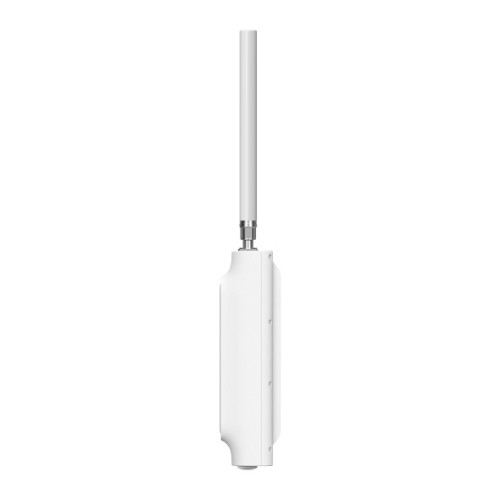

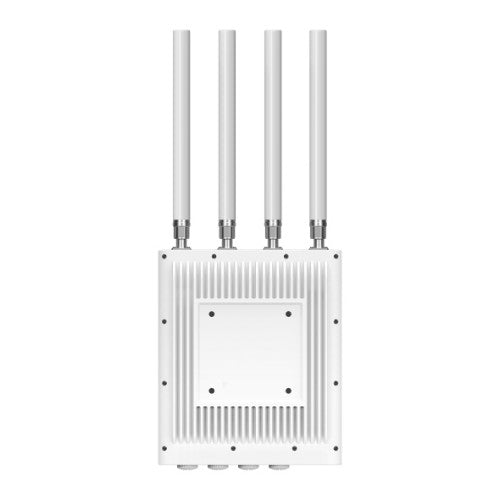

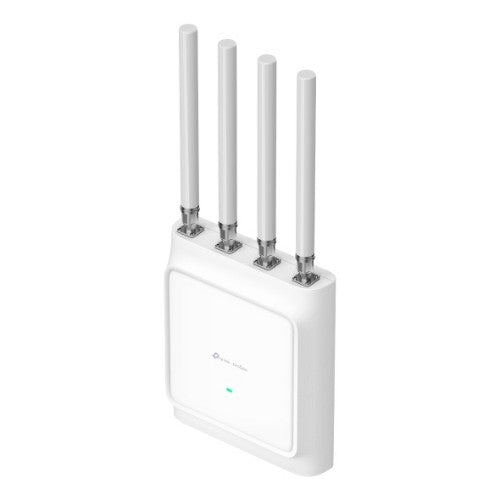

TP-Link Omada EAP668 Outdoor HD 3500 Mbit/s White Power over Ethernet (PoE)

EAP668-Outdoor HD AX3600 Indoor/Outdoor WiFi 6 Access Point

Key Features

• Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
• High-Density Connectivity: Supports up to 1,024 devices.

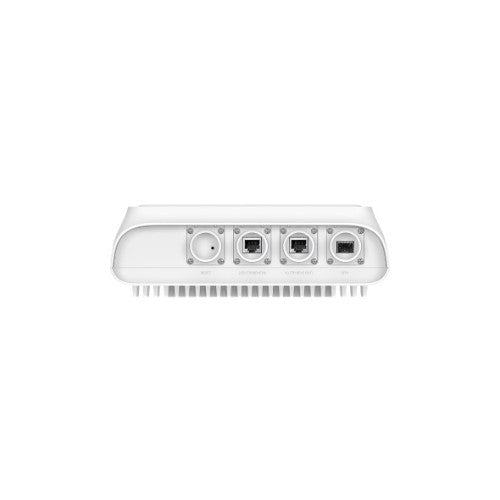

• Multiple Ports for Flexible Network Solutions: 1× 10G SFP+ slot, 1× 2.5G PoE-In port, and 1× Gigabit PoE-Out port.
• PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.
• Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
• Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.

Description

Ultra-High Capacity
Powered by a high-performance multi-core CPU and advanced QoS, the EAP668-Outdoor HD delivers optimal WiFi performance to support 1000+ connected devices.

Industry-Leading IP68 Weatherproof Design
The fully sealed EAP668-Outdoor HD surpasses IP67 standards, providing total dustproof protection and enduring prolonged submersion in water—ideal for even the harsh outdoor conditions.

Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Easy and Quick Setup
Easy Installation through Wall and Pole Mount

Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP668-Outdoor HD through automatic device identification and one-click adoption.

Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	3500 Mbit/s
Web-based management	Yes
Reset button	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Firmware upgradeable	Yes
Certification	CE, FCC, RoHS
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	3500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Bluetooth	Yes
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Security
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Protocols
DHCP client	Yes
Management features
Web-based management	Yes
Firmware upgradeable	Yes
Cloud-managed	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Pole
Reset button	Yes
Product colour	White
Certification	CE, FCC, RoHS
Antenna
Antenna type	External
Antennas quantity	4
Antenna gain level (max)	6 dBi
Antenna direction type	Omni-directional
Certificates
Certification	CE, FCC, RoHS
Weight & dimensions
Width	240 mm
Depth	80 mm
Height	315 mm
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
