1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45), Wi-Fi 6 2.4 - 5 GHz, 300m, 230 × 207.5 × 69.7 mm
Key Features
- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.†
- Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.*
- PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included)
- Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.§
Description

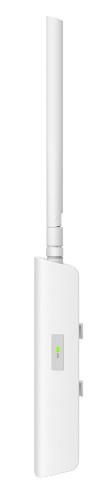

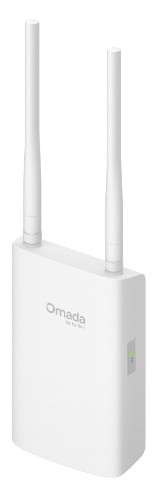

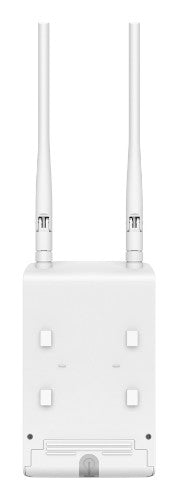

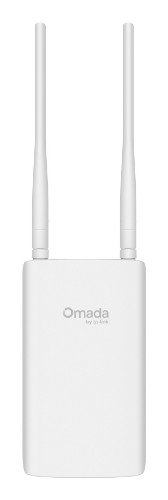

TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point with AX1800 dual-band, 2×2 MIMO, long-range IP66/65 design, PoE+, 1×GE port
•Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.†
•Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.*
•PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included).
•Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
•Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
•Advanced Features: Omada Mesh, Seamless Roaming, and Centralised Cloud Management.§
Warranty Period: 3-Year
Specifications
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1800 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Web-based management |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at |
| Maximum outdoor range |
300 m |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Features |
|---|
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1800 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at |
| Maximum outdoor range |
300 m |
| Bluetooth |
Yes |
| Maximum data transfer rate (2.4 GHz) |
573 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1201 Mbit/s |
| Security |
|---|
| Number of SSID supported |
16 |
| Security algorithms |
EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Guest access |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Backup function |
Yes |
| Ports & interfaces |
|---|

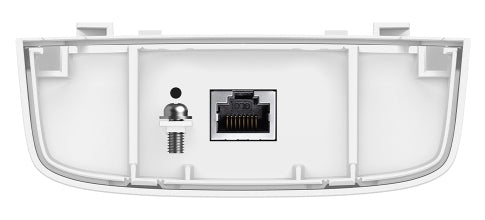

| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
4.8 W |
| Input current |
0.36 A |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| DC voltage range |
42.5 - 57 V |
| Design |
|---|
| Placement |
Pole, Wall |
| International Protection (IP) code |
IP65, IP66 |
| Product colour |
White |
| Antenna |
|---|
| Antenna type |
Internal & external |
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Antenna direction type |
Omni-directional |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Software |
|---|
| Access Control List (ACL) |
Yes |
| Weight & dimensions |
|---|
| Width |
230 mm |
| Depth |
207.5 mm |
| Height |
69.7 mm |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| PoE adapter included |
Yes |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| PoE adapter included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
