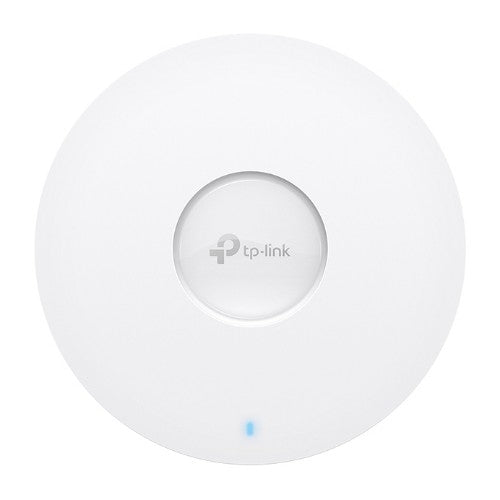

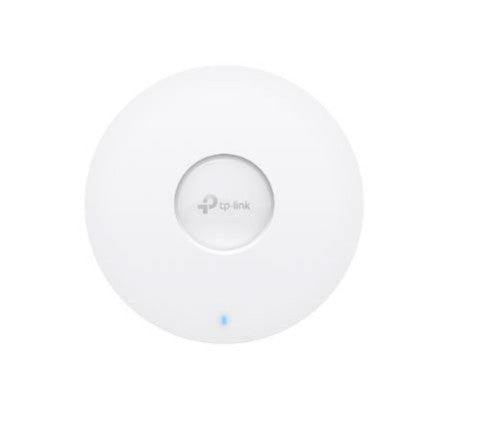

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point

2.4GHz (1148Mbps), 5GHz (4804Mbps), 802.11ax/ac/n/g/b/a, 1× 2.5 Gigabit PoE+ Port, 220 × 220 × 32.5 mm

Key Features

• Blazing-Fast WiFi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps WiFi speeds.†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations

Description

Boost Your Business with High-Performance Business WiFi 6

Wi-Fi 6 Brings Real Power to Your Business

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance*
Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Easy Deployment & Higher Performance by Omada Mesh §
Easy Pairing, Less Wiring
With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between APs, while self-healing ensures your devices stay online even when one AP is disrupted.

Boosted Network Security and Efficiency

Secure Guest Network with up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5 GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks.

Airtime Fairness
Increases average network throughput in heavily congested environments.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Automatic channel selection	Yes
Maximum data transfer rate	4804 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Spread spectrum method	OFDMA
Frequency band	2.4 - 5 GHz
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Certification	CE, RoHS
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Automatic channel selection	Yes
Maximum data transfer rate	4804 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Spread spectrum method	OFDMA
Frequency band	2.4 - 5 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel scanning	Yes
Fast roaming	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	4804 Mbit/s
BeamForming	Yes
Security
Number of SSID supported	16
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Output voltage	12 V
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Reset button	Yes
LED indicators	Yes
Product colour	White
Certification	CE, RoHS
Antenna
Antenna type	Internal
Antenna gain level (max)	5 dBi
Antenna direction type	Omni-directional
Software
Automatic channel scanning	Yes
Access Control List (ACL)	Yes
Fast roaming	Yes
Weight & dimensions
Width	220 mm
Depth	220 mm
Height	32.5 mm
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
