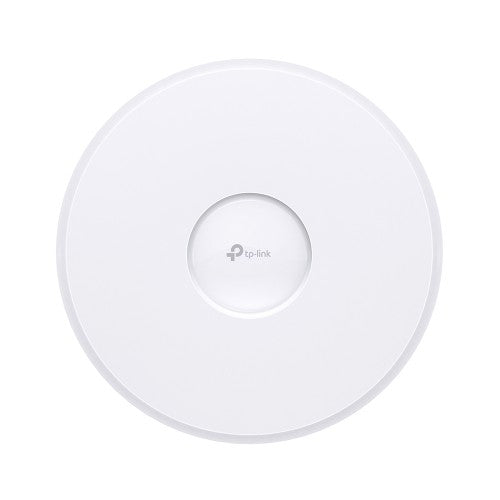

TP-Link Omada AX5400 Multi-Gigabit Ceiling Mount WiFi 6 Access Point
SAVE 9%

TP-LINK

TP-Link Omada AX5400 Multi-Gigabit Ceiling Mount WiFi 6 Access Point

Read reviews
SKU: EAP770
Your price $454.44
List price $501.13 Save $46.69
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

2.4GHz (688 Mbps), 5GHz (2882 Mbps), 6GHz (5760 Mbps), 1× 2.5G RJ-45, 220 x 220 x 32.5 mm, EU

Description

Omada Solution
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Specifications

Performance
2.4 GHz Yes
5 GHz Yes
Flow control support Yes
Automatic channel selection Yes
Syslog Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Spread spectrum method OFDMA
Web-based management Yes
VLAN support Yes
Reset button Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Firmware upgradeable Yes
Certification CE, FCC, RoHS
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Features
6 GHz Yes
2.4 GHz Yes
5 GHz Yes
Flow control support Yes
Automatic channel selection Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Spread spectrum method OFDMA
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Cabling technology 10/100/1000/2500Base-T
Transmitting power (FCC) < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 23 dBm (6 GHz
Transmitting power (CE) < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP)
Automatic channel scanning Yes
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 2882 Mbit/s
Fit AP mode features Mesh networking
Maximum data transfer rate (6 GHz) 5765 Mbit/s
BeamForming Yes
Security
Security algorithms SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
MAC address filtering Yes
Access Control List (ACL) Yes
Management features
Syslog Yes
Web-based management Yes
Firmware upgradeable Yes
Ports & interfaces
USB 2.0 ports quantity 0
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Cabling technology 10/100/1000/2500Base-T
Power
Input current 2.5 A
Power over Ethernet (PoE) Yes
DC voltage range 12 V
Design
Placement Ceiling, Wall
Reset button Yes
LED indicators Yes
Product colour White
Certification CE, FCC, RoHS
Antenna
Antenna type Internal
Certificates
Certification CE, FCC, RoHS
Software
Automatic channel scanning Yes
Access Control List (ACL) Yes
Weight & dimensions
Width 220 mm
Depth 220 mm
Height 32.5 mm
Weight 730 g
Packaging data
Quick start guide Yes
Mounting kit Yes
Package type Box
Packaging content
Quick start guide Yes
Mounting kit Yes
Quantity per pack 1 pc(s)
Package type Box
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Logistics data
Quantity per pack 1 pc(s)
Brand
TP-LINK
SKU
EAP770
