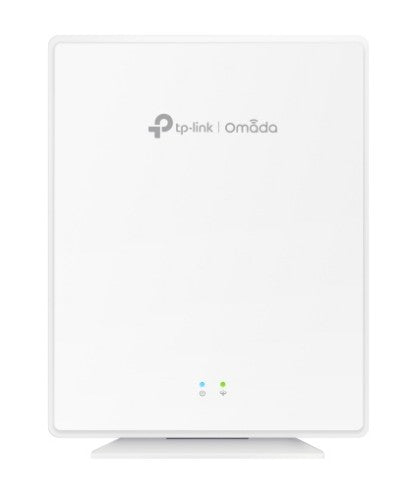

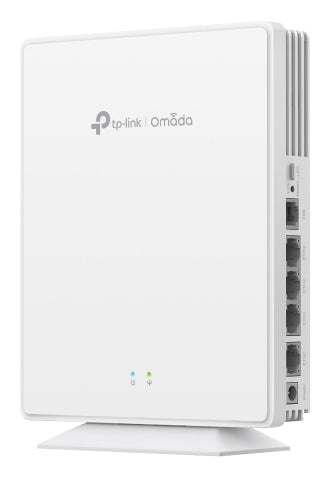

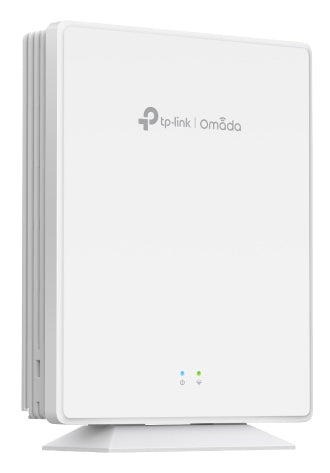

TP-Link Omada AX1800 Wi-Fi 6 Desktop GPON Access Point

1x GPON, 1x FXS, 4x Gigabit RJ-45, 53.5V/0.81A DC, 175 x 140 x 33 mm

Key Features

• Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
• 1× GPON Port for High-Speed and Ultra-Range Access
• Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
• One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Smart O&M: PPSK△ and Multiple Portals§
• High Flexibility: Support both desktop and wall mounting setups
• Centralized Management: Integrates with the Unified Optical Solution

Description

AX1800 Wi-Fi 6 Desktop/Wall Mounting GPON Access Point

Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.

One Fiber, Multiple Services
Connect a fiber optic cable to the EAP610GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.

Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.* Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.

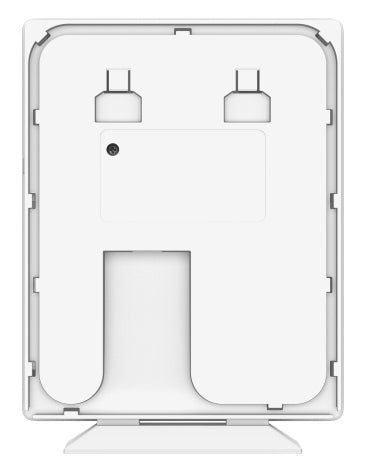

Flexible Desktop/Wall Installation
Choose a suitable installation method according to your needs.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Syslog	Yes
Maximum data transfer rate	1800 Mbit/s
Ethernet LAN data rates	1000,10,100 Mbit/s
Spread spectrum method	OFDMA
Frequency band	2.4 - 5 GHz
Number of users	120 user(s)
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channel bandwidth	80 MHz
Certification	CE, FCC, RoHS, IC
MIMO type	Multi User MIMO
MIMO	Yes
Wi-Fi roaming	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Maximum data transfer rate	1800 Mbit/s
Ethernet LAN data rates	1000,10,100 Mbit/s
Spread spectrum method	OFDMA
Frequency band	2.4 - 5 GHz
Number of users	120 user(s)
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channel bandwidth	80 MHz
Transmitting power (FCC)	25 dBm
Transmitting power (CE)	20 dBm
MIMO type	Multi User MIMO
MIMO	Yes
Wi-Fi roaming	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
BeamForming	Yes
Security
Number of SSID supported	16
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs, SSID broadcast on/off
Management features
Syslog	Yes
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0

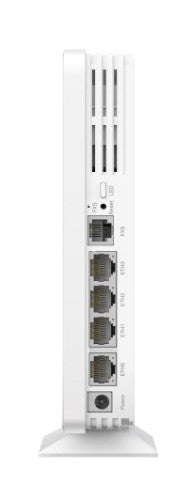

Ethernet LAN (RJ-45) ports	4
Power
Power consumption (typical)	17.3 W
Power over Ethernet (PoE)	Yes
DC voltage range	53.5 V
Design
Placement	Desk, Wall
Reset button	Yes
LED indicators	Power
Product colour	White
Certification	CE, FCC, RoHS, IC
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	5 dBi
Antenna direction type	Omni-directional
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Certification	CE, FCC, RoHS, IC
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	175 mm
Depth	140 mm
Height	33 mm
Weight	492 g
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
