3x Gigabit Ethernet Ports, IEEE 802.11 a/n/ac 5 GHz (867 Mbps), 5000m max, IP65
Key Features
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
- Ideal for long-range wireless transmission up to 5 km
- Auto-pairing and agile LEDs for efficient deployment

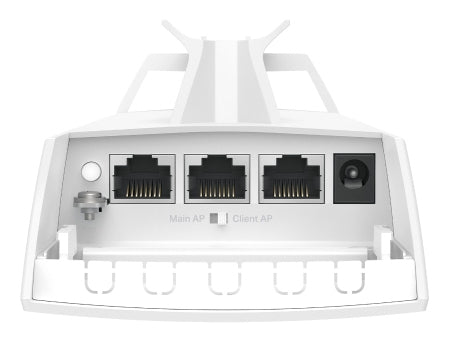

- 3 × Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
Description
EAP215-Bridge KITOmada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 3.1 mi (5 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
867 Mbit/s |
| Maximum transfer distance |
5000 m |
| Antenna |
|---|
| Antenna gain level (max) |
14 dBi |
| Antenna design |
Internal |
| Antenna type |
2x2 |
| Wireless LAN features |
|---|
| Frequency band |
5 GHz |
| Antenna gain level (max) |
14 dBi |
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Antenna type |
2x2 |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Frequency band |
5 GHz |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
3 |
| DC-in jack |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Security |
|---|
| Security algorithms |
SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| LED indicators |
Power |
| Features |
|---|
| Product type |
Network bridge |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| International Protection (IP) code |
IP65 |
| LED indicators |
Power |
| Product colour |
White |
| Mounting type |
Pole |
| Power |
|---|
| Power source type |
DC, PoE |
| DC input voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) voltage |
24 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Technical details |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Width |
224 mm |
| Depth |
79 mm |
| Height |
60 mm |
| Packaging content |
|---|
| Cables included |
AC |
| PoE+ Injector(s) |
Yes |
