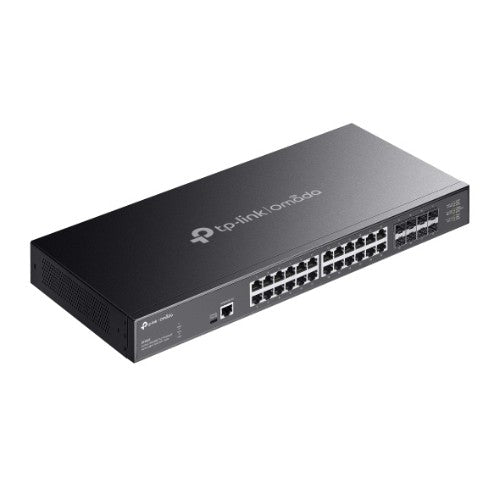

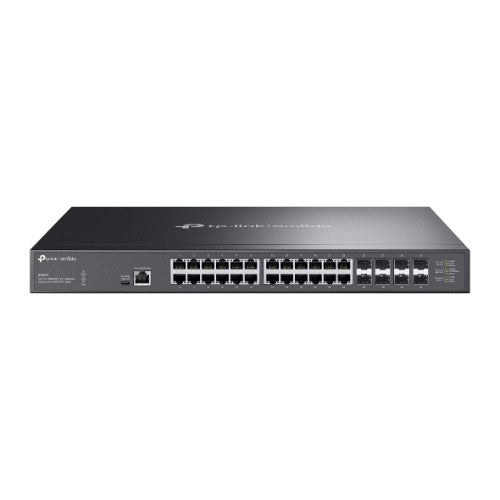

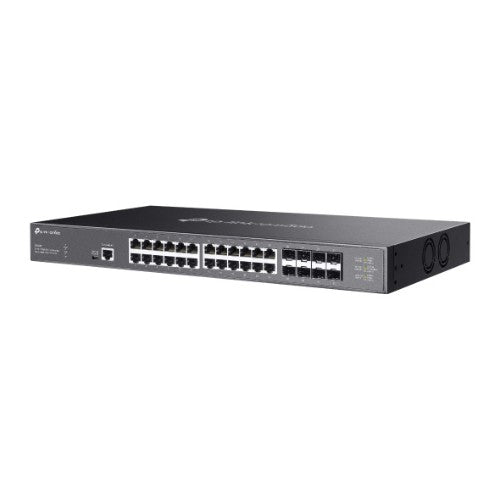

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
SAVE 21%

TP-LINK

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

Read reviews
SKU: SX3832
Your price $2,275.41
List price $2,883.64 Save $608.23
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

24× 1/2.5/5/10 Gbps RJ45, 8× 1/10 Gbps SFP+, 640 Gbps, 32 K MAC, 9 KB Jumbo, 440 x 220 x 44 mm

Key Features

  • 24× 1/2.5/5/10 Gbps RJ45 ports
  • 8× 1/10 Gbps SFP+ slots
  • 640 Gbps switching capacity
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

Description

Omada 24-Port 10GBASE-T
L2+ Managed Switch with 8
10GE SFP+ Slots

- 24× 1/2.5/5/10 Gbps RJ45 Ports
- 8× 10 Gbps SFP+ Slots
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
- Traffic Separation

Specifications

Management features
ARP inspection Yes
Switch layer L2/L2+
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Configuring Location Settings (CLI) Yes
Cloud-managed Yes
Ports & interfaces
SFP+ module slots quantity 8
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Console port RJ-45/USB Type-C
USB Type-C ports quantity 1
Network
Networking standards IEEE 802.3az
VLAN support Yes
Spanning tree protocol Yes
Rate limiting Yes
Port mirroring Yes
IP routing Yes
Flow control support Yes
Ethernet LAN data rates 10,100 Mbit/s
Broadcast storm control Yes
10G support Yes
Virtual LAN features MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
IGMP snooping Yes
Data transmission
Jumbo frames 9000
MAC address table 32000 entries
Switching capacity 640 Gbit/s
Jumbo frames support Yes
Packet buffer memory 24 MB
Static route Yes
Forwarding rate 240 Mpps
Security
Loop protection Yes
Authentication Auto VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) Yes
Authentication type AAA, RADIUS, TACACS+
DHCP features DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Product colour Black
Form factor 1U
LED indicators Yes
Number of fans 2 fan(s)
Power
Power consumption (max) 106.5 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 363.23 BTU/h
Virtual LAN features
VLAN support Yes
Virtual LAN features MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Weight & dimensions
Width 440 mm
Depth 220 mm
Height 44 mm
Packaging content
Rack mount kit Yes
Quick start guide Yes
Cables included AC, LAN (RJ-45)
Performance
Stackable Yes
Packet buffer memory 24 MB
Packaging data
Rack mount kit Yes
Quick start guide Yes
Cables included AC, LAN (RJ-45)
Other features
Ethernet LAN data rates 10,100 Mbit/s
