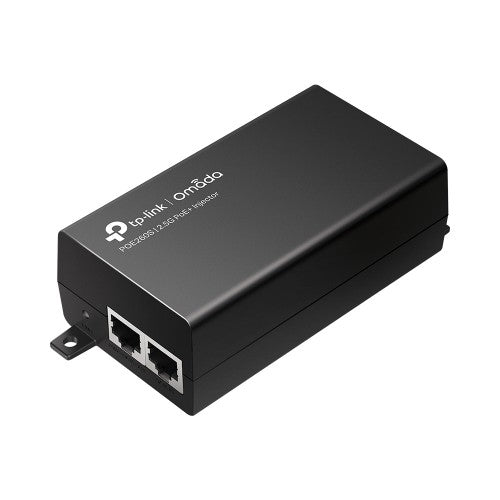

2.5G PoE+ Injector Adapter
Key Features
- 2× 2.5 Gbps ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Description

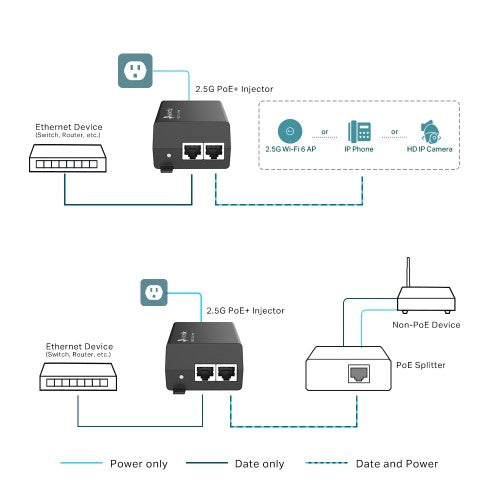

What This Product DoesThe 2.5G PoE+ Injector POE260S (TL-POE260S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features |
|---|
| Wall mountable |
Yes |
| Easy to install |
Yes |
| Maximum operating distance |
100 m |
| Product colour |
Black |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Package type |
Box |
| Certification |
FCC, CE, RoHS |

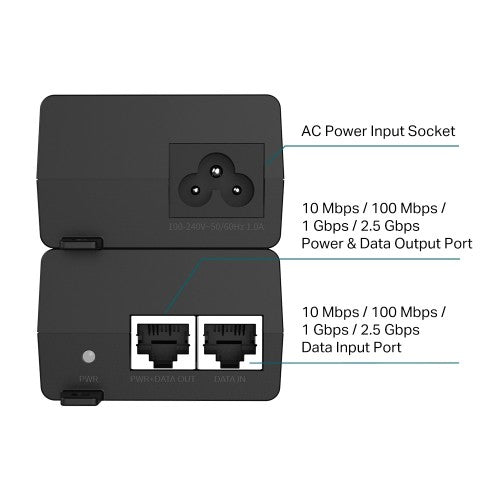

| Ports & interfaces |
|---|
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
|---|
| Output power |
30 W |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
125 mm |
| Depth |
59.4 mm |
| Height |
36.8 mm |
| Package weight |
500 g |
| Package depth |
230 mm |
| Package width |
170 mm |
| Package height |
80 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Number of products included |
1 pc(s) |
| Wall mounting kit |
Yes |
| Package type |
Box |
| Packaging data |
|---|
| Package weight |
500 g |
| Package type |
Box |
| Package depth |
230 mm |
| Package width |
170 mm |
| Package height |
80 mm |
| Technical details |
|---|
| Package width |
170 mm |
| Package height |
80 mm |
| Number of products included |
1 pc(s) |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
