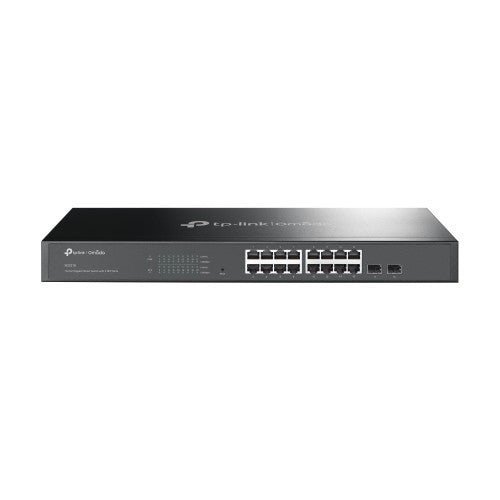

16× 10/100/1000 Mbps RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9KB Jumbo, 440 × 180 × 44 mm
Key Features
- 16× Gigabit RJ45 ports and 2× Gigabit SFP slots
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and rackmountable design
Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
| Management features |
|---|
| ARP inspection |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| 10G support |
No |
| Virtual LAN features |
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| MAC address table |
8000 entries |
| Switching capacity |
36 Gbit/s |
| Store-and-forward |
Yes |
| Number of static routes |
32 |
| Number of IP interfaces |
16 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4.1 MB |
| Static route |
Yes |
| Forwarding rate |
26.8 Mpps |
| Number of VLANs |
4000 |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Security |
|---|
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Protocols |
|---|
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
| Performance |
|---|
| Fanless |
Yes |
| Packet buffer memory |
4.1 MB |
| Power |
|---|
| Power consumption (max) |
12.3 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
41.97 BTU/h |
| Virtual LAN features |
|---|
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Virtual LAN features |
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, LAN (RJ-45) |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Mobile network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, LAN (RJ-45) |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
