10GBASE-T RJ45 SFP+ Module
Key Features
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Fully Metallic Enclosure for Low EMI
Description

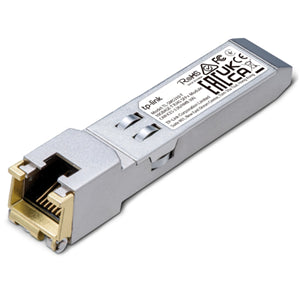

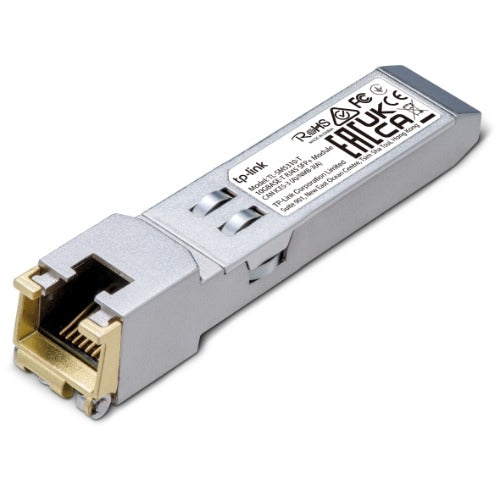

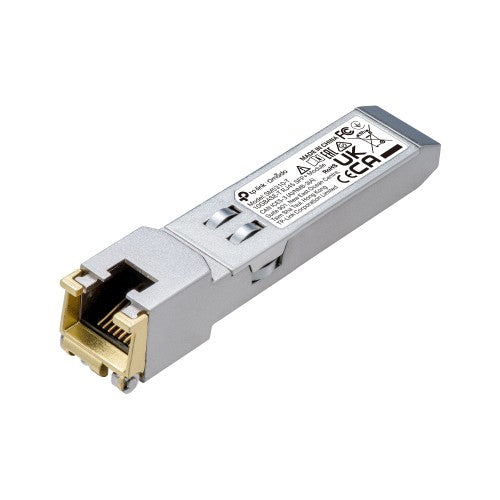

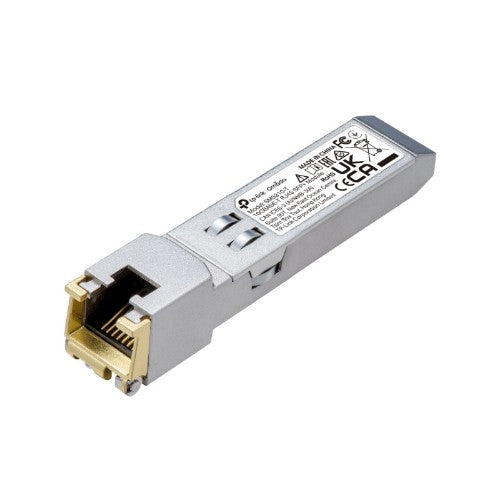

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module
• Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
• Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
• Support DDM (Temperature and Voltage)
• Hot-Pluggable SFP+ Footprint Features
• Support TX Disable function
• Commercial Product Operating Temperature Range: 0-70°C
• Fully Metallic Enclosure for Low EMI
PACKAGE CONTENTS
Package Contents • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T
• Installation Guide
HARDWARE FEATURES
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply 3.3V
Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m)
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate 10.3 Gbps
Port Type 1× 10G RJ45 Port
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
Storage Temperature: -40–85 ℃ (-40–185 ℉)
Specifications
| Performance |
|---|
| SFP transceiver type |
Copper |
| Ethernet LAN |
Yes |
| Interface type |
RJ-45 |
| Maximum data transfer rate |
10300 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
| Maximum transfer distance |
100 m |
| Ethernet interface type |
10 Gigabit Ethernet |
| Copper ethernet cabling technology |
10GBASE |
| Easy to install |
Yes |
| Product colour |
Silver |
| Housing material |
Metal |
| Hot-Plug support |
Yes |
| Features |
|---|
| Easy to install |
Yes |
| Product colour |
Silver |
| Housing material |
Metal |
| Hot-Plug support |
Yes |
| Form factor |
SFP+ |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Network |
|---|
| SFP transceiver type |
Copper |
| Interface type |
RJ-45 |
| Maximum data transfer rate |
10300 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
| Ethernet interface type |
10 Gigabit Ethernet |
| Weight & dimensions |
|---|
| Width |
67.4 mm |
| Depth |
13.8 mm |
| Height |
13.8 mm |
| Package width |
81.5 mm |
| Package depth |
122.5 mm |
| Package height |
38.5 mm |
| Package weight |
2.87 kg |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
81.5 mm |
| Package depth |
122.5 mm |
| Package height |
38.5 mm |
| Package weight |
2.87 kg |
| Technical details |
|---|
| Ethernet LAN |
Yes |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
