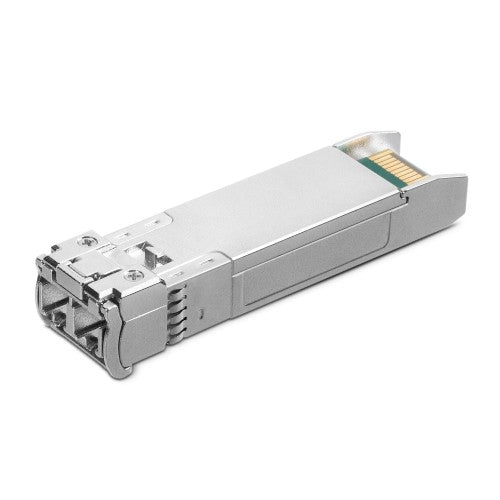

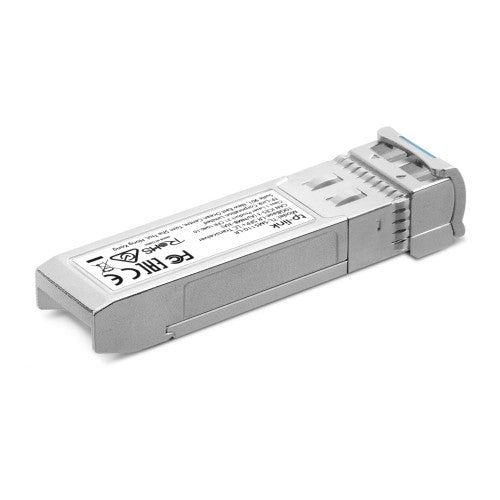

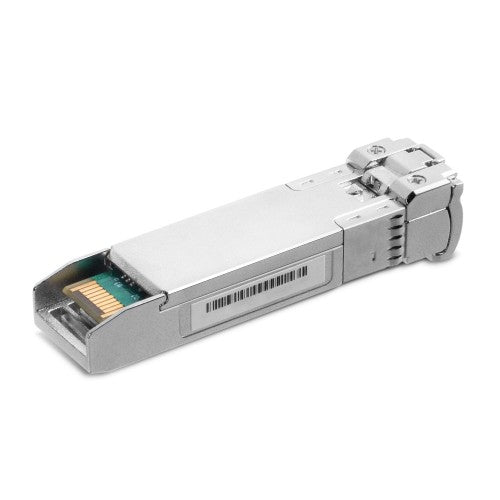

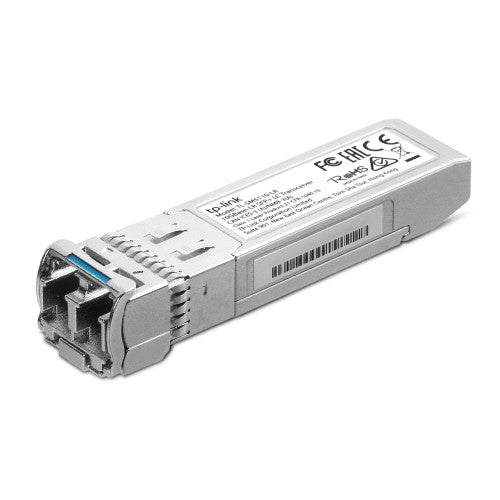

10Gbase-LR SFP+ LC Transceiver
Key Features
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

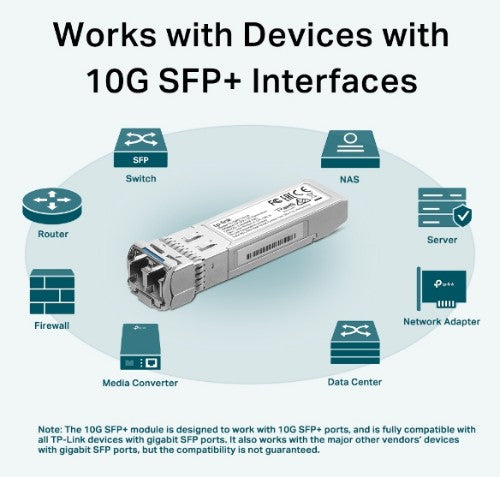

- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
Description

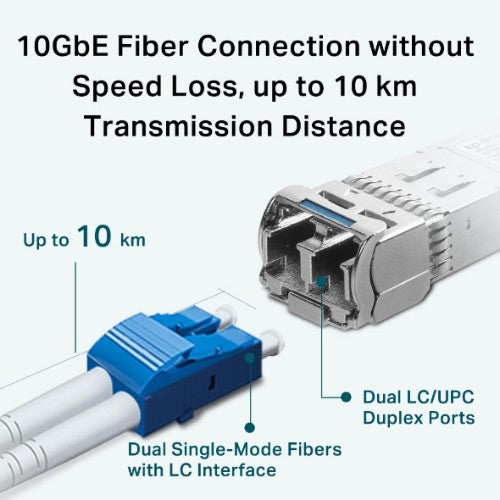

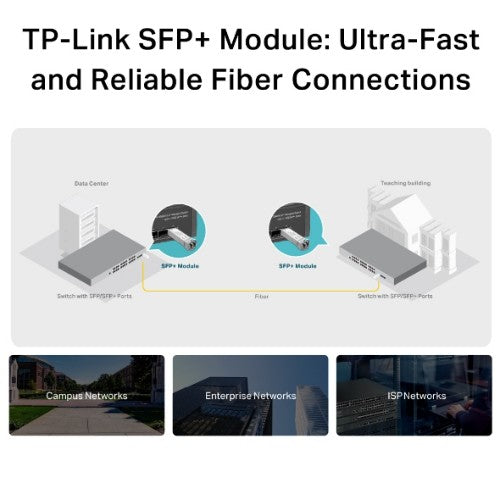

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Duplex system |
Full |
| Single-mode fiber (SMF) supported |
Yes |
| Multi-mode fiber (MMF) supported |
No |
| SFP transceiver standard |
LR |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Compatible products |
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
| Brand compatibility |
TP-Link |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Compatible products |
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
| Brand compatibility |
TP-Link |
| Certification |
FCC, CE |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Certification |
FCC, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |

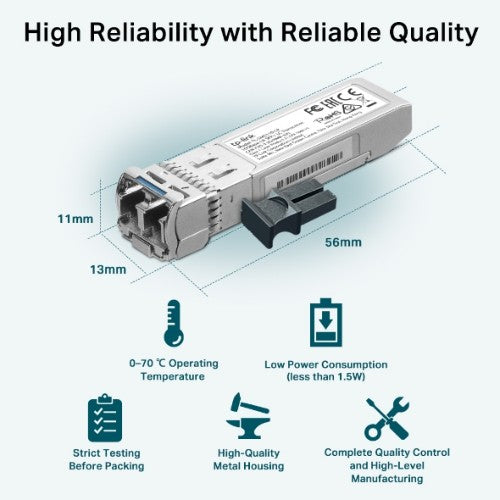

| Weight & dimensions |
|---|
| Width |
56.7 mm |
| Depth |
13.9 mm |
| Height |
10.3 mm |
| Package width |
81.5 mm |
| Package depth |
122.5 mm |
| Package height |
38.5 mm |
| Package weight |
60 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
81.5 mm |
| Package depth |
122.5 mm |
| Package height |
38.5 mm |
| Package weight |
60 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
