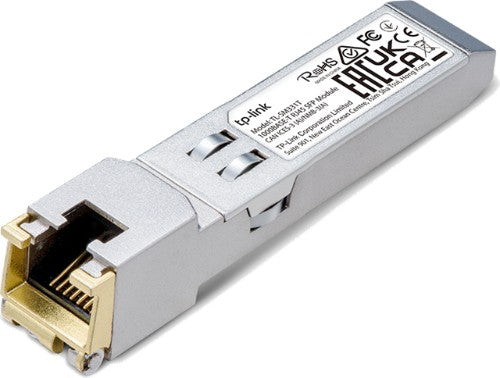

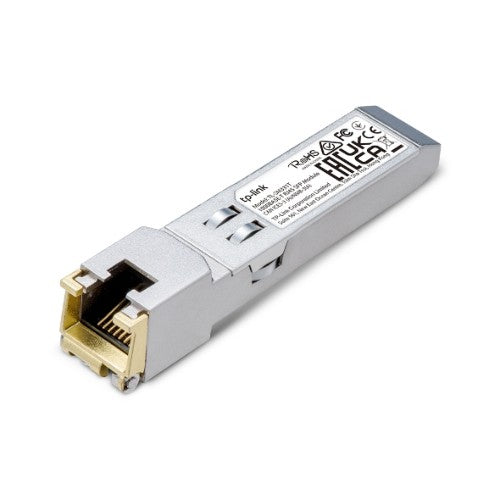

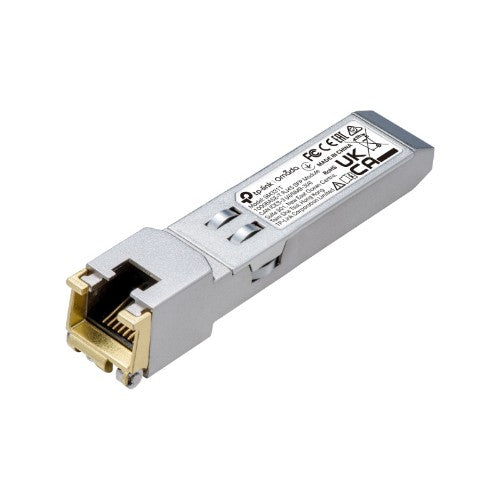

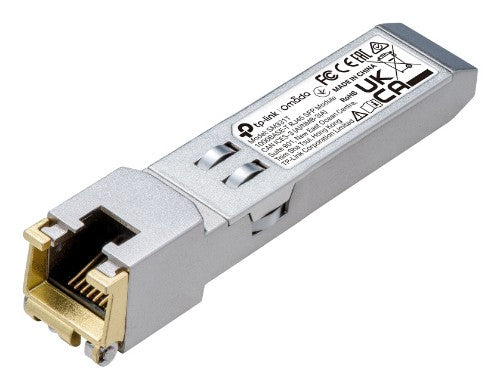

1000BASE-T RJ45 SFP Module SPEC: 1000Mbps RJ45 Copper Transceiver, Plug and Play with SFP Slot, Up to 100 m Distance (Cat5e or above)
Key Features
- Support 1000BASE-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
Description
TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module
• Support 1000BASE-T Operation in Host Systems
• Support TX Disable function
• For 100m Reach Over UTP Cat 5e or above Cable
• Hot-Pluggable SFP Footprint Features
• Commercial Product Operating Temperature Range: 0-70°C
• Compliant with IEEE Std 802.3-2002
• Fully Metallic Enclosure for Low EMI
• Low Power Dissipation (0.5 W Typical, 0.8 W Max)
PACKAGE CONTENTS
Package Contents • 1000BASE-T RJ45 SFP Module TL-SM331T
• Installation Guide
HARDWARE FEATURES
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE 802.3-2002
Power Supply 3.3V
Max. Cable Length 100m (Cat 5e or above)
Data Rate 1.25 Gbps
Port Type 1× 1000 Mbps RJ45 Port
Safety & Emission FCC, CE
Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
Storage Temperature: -40–85 ℃ (-40–185 ℉)
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Ethernet LAN |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Networking standards |
IEEE 802.3ae |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Fiber cable diameters supported (core/cladding) |
50/125 µm |
| Multi-mode fiber (MMF) supported |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Product colour |
Silver |
| Features |
|---|
| Product colour |
Silver |
| Certification |
FCC, CE |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Certification |
FCC, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Networking standards |
IEEE 802.3ae |
| Ethernet interface type |
Gigabit Ethernet |
| Weight & dimensions |
|---|
| Width |
67.4 mm |
| Depth |
13.8 mm |
| Height |
13.8 mm |
| Package width |
81.5 mm |
| Package depth |
122.5 mm |
| Package height |
38.5 mm |
| Package weight |
60 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| User guide |
Yes |
| Packaging data |
|---|
| User guide |
Yes |
| Package width |
81.5 mm |
| Package depth |
122.5 mm |
| Package height |
38.5 mm |
| Package weight |
60 g |
| Technical details |
|---|
| Ethernet LAN |
Yes |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
