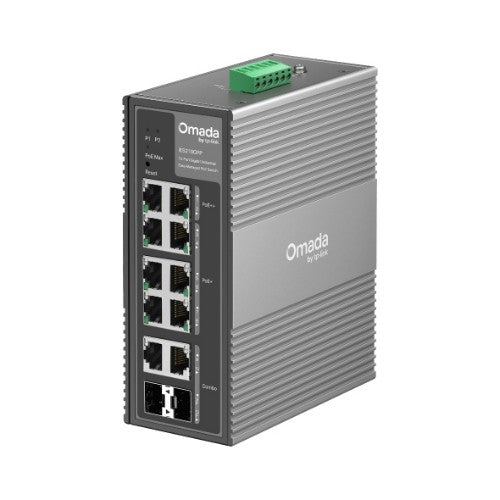

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
SAVE 2%

TP-LINK

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

Read reviews
SKU: IES210GPP
Your price $377.30
List price $385.79 Save $8.49
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

2× PoE++, 6× PoE+, 2× RJ45/SFP, 12 Gbps, 8K MAC, 15 KB Jumbo, 155 x 120 x 60 mm

Key Features

  • 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Description

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch

Industrial-Grade Protection Built for Harsh Environments

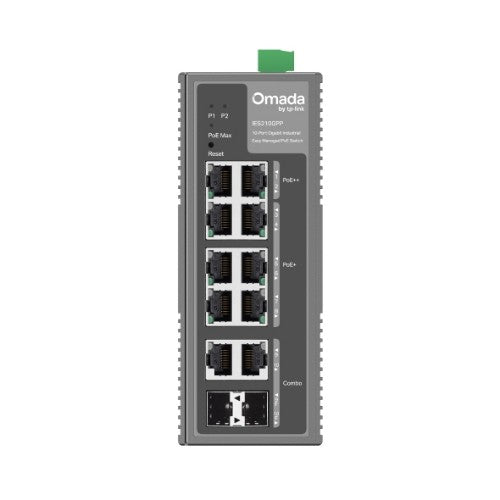

- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature

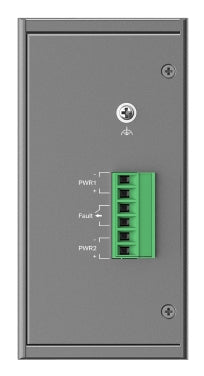

- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management

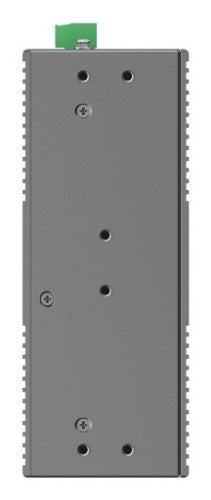

- DIN-Rail & Wall Mounting

Specifications

Management features
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs 4000
VLAN support Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Broadcast storm control Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
IGMP snooping Yes
Data transmission
Jumbo frames 15000
MAC address table 8000 entries
Switching capacity 20 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Packet buffer memory 4000 MB
Forwarding rate 14.88 Mpps
Number of VLANs 4000
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP client
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Product colour Grey
Form factor DIN rail
LED indicators Yes
Power
DC input voltage 12 - 57 V
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 6
Total Power over Ethernet (PoE) budget 240 W
Power over Ethernet 4PPoE (PoE++) ports quantity 2
Virtual LAN features
Number of VLANs 4000
VLAN support Yes
Weight & dimensions
Width 155 mm
Depth 120 mm
Height 60 mm
Performance
Packet buffer memory 4000 MB
Auto-negotiation Yes
Other features
Ethernet LAN data rates 10,100,1000 Mbit/s
Brand
TP-LINK
SKU
IES210GPP
