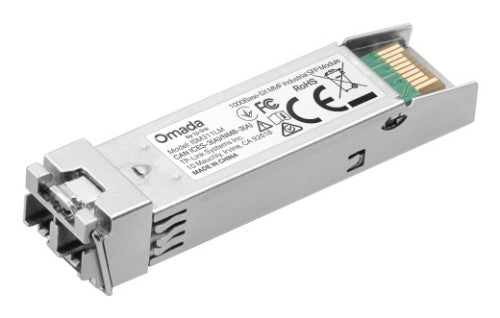

TP-Link ISM311LM network transceiver module Fiber optic 1.25 Mbit/s SFP 850 nm

TP-LINK

TP-Link ISM311LM network transceiver module Fiber optic 1.25 Mbit/s SFP 850 nm

Read reviews
SKU: ISM311LM
Your price $44.06
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

ISM311LM 1000Base-SX MMF Industrial SFP Module

Key Features

  • Multi-mode SFP LC Transceiver
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Hot-Pluggable with maximum flexibility
  • Industrial Product Operating Temperature Range: -40-85°C

Description

ISM311LM is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LM can extend the distance to 550m. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Specifications

Performance
SFP transceiver type Fiber optic
Interface type SFP
Maximum data transfer rate 1.25 Mbit/s
Fiber optic connector LC (UPC)
Networking standards IEEE 802.3z
Maximum transfer distance 550 m
Wavelength 850 nm
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Multi-mode fiber (MMF) supported Yes
Ethernet interface type 1.25 Gigabit Ethernet
Product colour Grey
Hot-swap Yes
Features
Product colour Grey
Hot-swap Yes
Certification FCC, CE
Power
Input voltage 3.3 V
Certificates
Certification FCC, CE
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 85%
Storage relative humidity (H-H) 5 - 85%
Minimum operating temperature -40 °C
Maximum operating temperature 85 °C
Network
SFP transceiver type Fiber optic
Interface type SFP
Maximum data transfer rate 1.25 Mbit/s
Fiber optic connector LC (UPC)
Networking standards IEEE 802.3z
Ethernet interface type 1.25 Gigabit Ethernet
Weight & dimensions
Width 56.4 mm
Depth 13.4 mm
Height 11 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Quantity per pack 1 pc(s)
Brand
TP-LINK
SKU
ISM311LM
