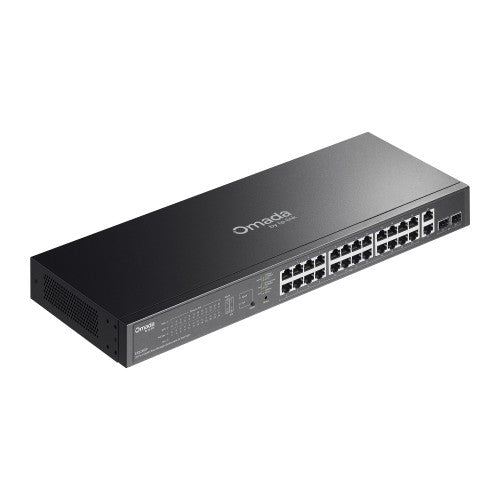

L2, 24xPoE+, 8K MAC, 56 Gbit/s, 100-240V, 50/60Hz
Description
Omada Central Essentials — A Free and Easy Cloud-Based Network ManagementOmada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application ScenariosSurveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
15000 |
| MAC address table |
8000 entries |
| Switching capacity |
56 Gbit/s |
| Store-and-forward |
Yes |
| Number of queues |
8 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4 MB |
| Forwarding rate |
41.67 Mpps |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| DHCP features |
DHCP client |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Power |
|---|
| Power protection features |
Surge protection |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
4 A |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
250 W |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Power protection features |
Surge protection |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC |
| Performance |
|---|
| Packet buffer memory |
4 MB |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging data |
|---|
| Manual |
Yes |
| Cables included |
AC |
