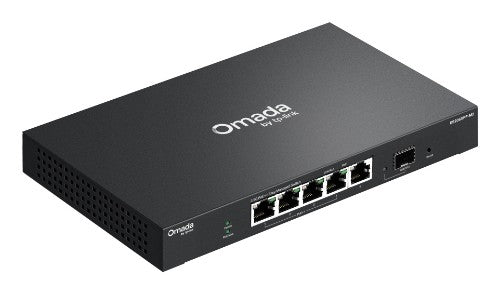

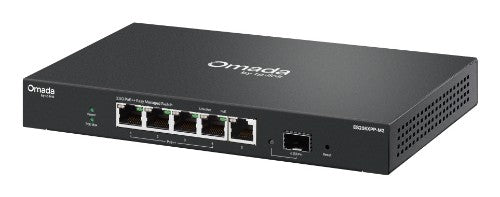

Omada 5-Port 2.5G BASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++
Key Features
- 5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps SFP+ slot
- 120W PoE budget, with up to 90W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Description
Power over Ethernet, Flexible Network DeploymentTransmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials for Free and Easy Cloud ManagementOmada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
1 |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
No |
| Virtual LAN features |
MTU VLAN, Port-based VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
10 |
| MAC address table |
16000 entries |
| Switching capacity |
45 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
0.64 MB |
| Forwarding rate |
33.48 Mpps |
| Security |
|---|
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Design |
|---|
| Product colour |
Black |
| Form factor |
Desktop/Wall-Mounting |
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
| Performance |
|---|
| Flash memory |
64 MB |
| Firmware upgradeable |
Yes |
| Packet buffer memory |
0.64 MB |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| Power source |
AC/PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
90 W |
| Power over Ethernet (PoE) |
Yes |
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
4 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN |
| Weight & dimensions |
|---|
| Width |
209 mm |
| Depth |
126 mm |
| Height |
26 mm |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
