Omada Gigabit Rackmount/Desktop VPN Gateway
Key Features
- 1× Gigabit SFP WAN/LAN port
- 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
- Rackmount/Desktop
Description

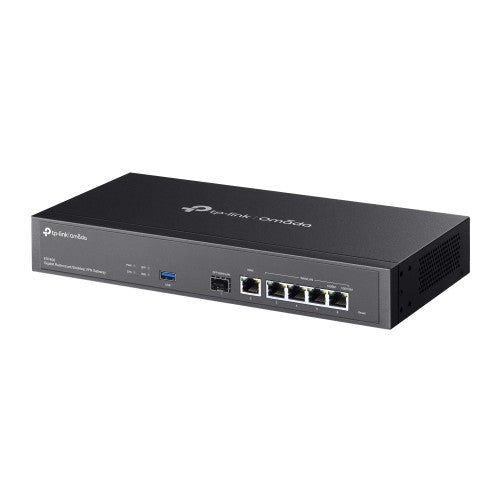

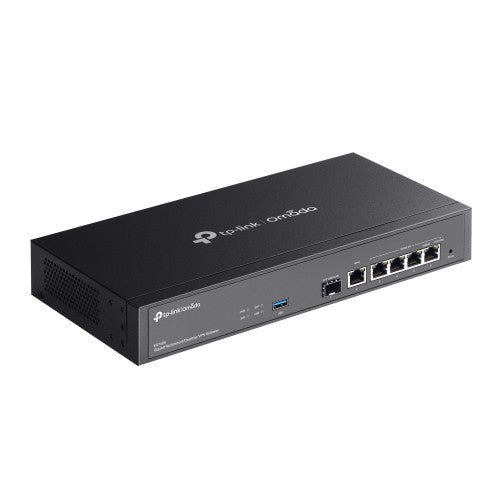

TP-Link ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway
• 1× Gigabit SFP WAN/LAN port
• 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
• 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
• High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralized cloud management via the web or the Omada app*
• DoS defence, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
• Rackmount/Desktop
Warranty Period: 5-Year
Specifications
| Ethernet LAN features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
|---|
| Internal memory type |
DDR4 |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| WAN connection |
|---|
| SFP WAN |
Yes |
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
Yes |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Static route |
Yes |
| VLAN support |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Management features |
|---|
| Web-based management |
Yes |
| Reset button |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
5 |
| Installed SFP modules quantity |
1 |
| USB ports quantity |
1 |
| Protocols |
|---|
| DHCP server |
Yes |
| DMZ support |
Yes |
| Security |
|---|
| Security algorithms |
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512 |
| VPN tunnels quantity |
50 |
| URL filtering |
Yes |
| DoS attack prevention |
Yes |
| ARP attack prevention |
Yes |
| ICMP attack prevention |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
AC |
| Features |
|---|
| Internal memory type |
DDR4 |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
7.5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
294 mm |
| Depth |
140 mm |
| Height |
44 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
AC |
