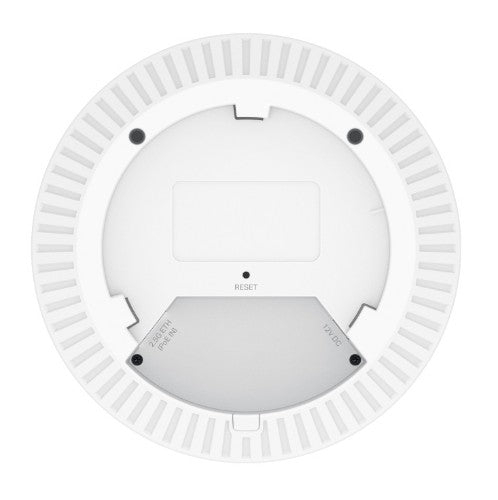

TP-Link EAP720 wireless access point 4324 Mbit/s White Power over Ethernet (PoE)

TP-LINK

TP-Link EAP720 wireless access point 4324 Mbit/s White Power over Ethernet (PoE)

SKU: EAP720
Your price $123.00
GST included · AUD

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Wi-Fi 7, 1x 2.5G Ethernet PoE+, 140 m2, 250+ Clients, 160 x 160 x 36.7 mm

Key Features

  • Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
  • 1× 2.5G Port: Ensures fast connectivity throughout the network.
  • Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
  • Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
  • Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
  • More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.

Description

Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP720 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Specifications

Performance
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Syslog Yes
Maximum data transfer rate 4324 Mbit/s
Ethernet LAN data rates 2500 Mbit/s
Spread spectrum method OFDMA
Web-based management Yes
VLAN support Yes
Reset button Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x
Firmware upgradeable Yes
Channel bandwidth 240 MHz
Airtime Fairness (ATF) Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Internal memory 4096 MB
Flash memory 128 MB
Features
6 GHz No
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Maximum data transfer rate 4324 Mbit/s
Ethernet LAN data rates 2500 Mbit/s
Spread spectrum method OFDMA
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x
Channel bandwidth 240 MHz
Airtime Fairness (ATF) Yes
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 4324 Mbit/s
BeamForming Yes
Coverage area 140 m²
Maximum Tx power (2.4 GHz) 25 dBmW
Maximum Tx power (5 GHz) 25 dBmW
Internal memory 4096 MB
Flash memory 128 MB
Security
Security algorithms EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SNMPv2, SNMPv3, SSH, SSID, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filtering Yes
Access Control List (ACL) Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Guest access Yes
Schedule access Yes
Protocols
Supported network protocols IPv4/IPv6
DHCP client Yes
Management features
Syslog Yes
Web-based management Yes
Firmware upgradeable Yes
Access point management Wi-Fi schedule
Cloud-managed Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Power
Power consumption (max) 17.83 W
Input current 1.5 A
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
DC voltage range 12 V
Design
Placement Ceiling, Wall
Reset button Yes
LED indicators Yes
Product colour White
Antenna
Antenna type Internal
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Software
Access Control List (ACL) Yes
Weight & dimensions
Width 160 mm
Depth 160 mm
Height 36.7 mm
Weight 410 g
Package width 245 mm
Package depth 228 mm
Package height 65 mm
Package weight 792 g
Packaging data
Quick start guide Yes

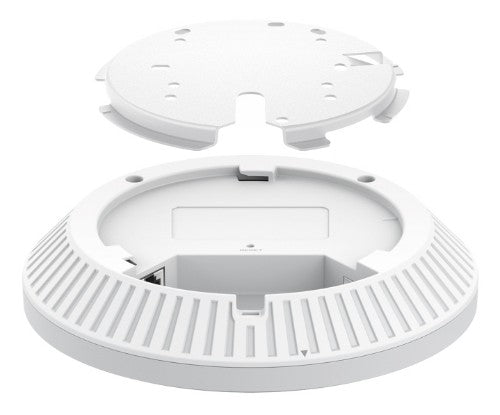

Mounting kit Yes
AC adapter included Yes
Package width 245 mm
Package depth 228 mm
Package height 65 mm
Package weight 792 g
Packaging content
Quick start guide Yes
Mounting kit Yes
AC adapter included Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Brand
TP-LINK
SKU
EAP720
