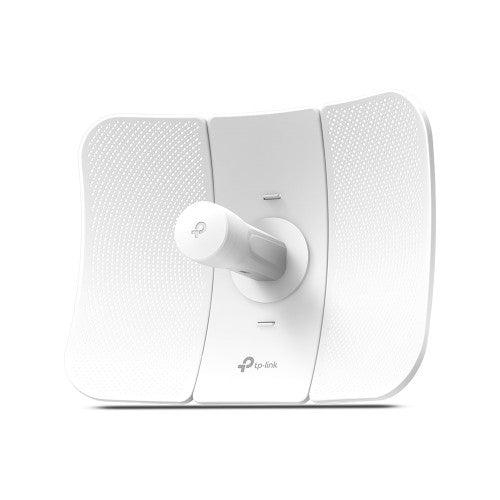

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi

5GHz 867Mbps, 27dBm, 2x2 MIMO, 802.3a/n/ac, 23dBi, IP65

Key Features

• 802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

Description

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

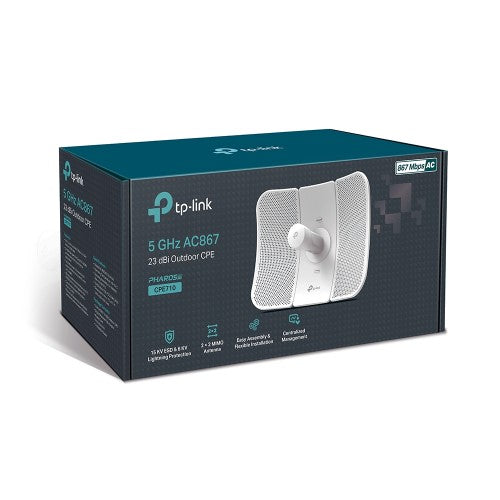

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

Specifications

Performance
Built-in processor	Yes
Processor frequency	750 MHz
Internal memory	128 MB
Flash memory	16 MB
Antenna gain level (max)	23 dBi
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Frequency band	5.15 - 5.85 GHz
Vertical beam width	7°
Horizontal beam width	9°
Gain	23 dBi
Wi-Fi standards	802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Features
Housing material	Plastic
International Protection (IP) code	IP65
LED indicators	Power
Antenna type	Directional antenna
Antenna connector type	PoE/LAN
Product colour	White
Antenna gain level (max)	23 dBi
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Frequency band	5.15 - 5.85 GHz
Vertical beam width	7°
Horizontal beam width	9°
Gain	23 dBi
Certification	CE, FCC, RoHS, IC
Power
Power source type	PoE
Input voltage	24 V
Certificates
Certification	CE, FCC, RoHS, IC
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	366 mm
Depth	280 mm
Height	207 mm
Packaging data
Package type	Box
Technical details
Harmonized System (HS) code	85176990
Packaging content
Package type	Box
Cables included	AC
Logistics data
Export Control Classification Number (ECCN)	EAR99
Harmonized System (HS) code	85176990
