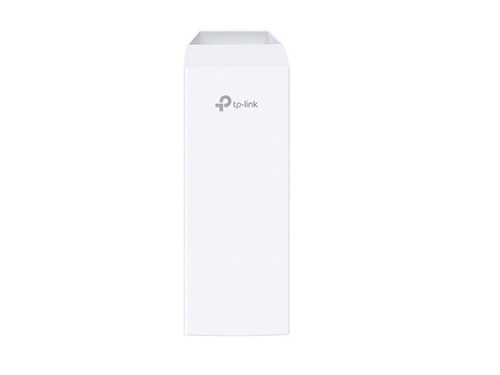

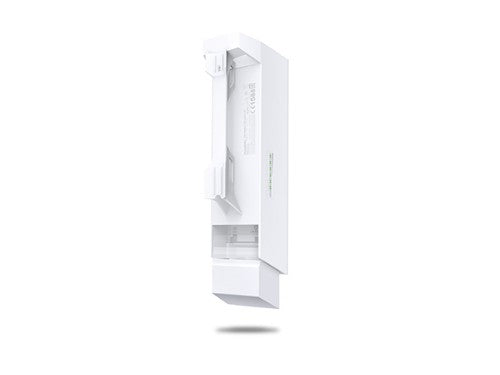

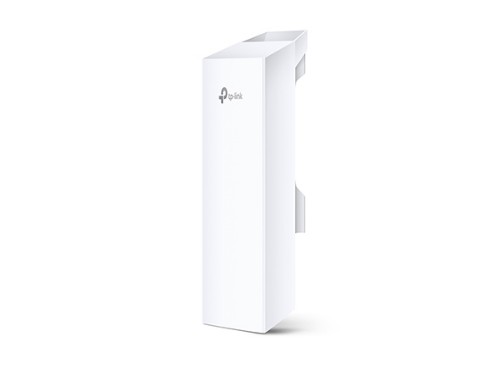

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

5GHz 300Mbps 13dBi Outdoor CPE, 560 Mhz, 64MB DDR2 RAM, 8MB Flash, IPX5, IEEE 802.11 a/n, 27dBm/500mw (Adjustable power by 1dBm)

Key Features

• Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 23dBm/200mw
• System-level optimizations for more than 15km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Description

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Specifications

Performance
Maximum data transfer rate	300 Mbit/s
Bandwidth	5 GHz
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	5.15 - 5.85 GHz
Web-based management	Yes
Reset button	Yes
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Networking standards	IEEE 802.11a, IEEE 802.11n
Maximum outdoor range	15000 m
Management platform	Pharos Control
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Internal memory	64 MB
Flash memory	8 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Built-in processor	Yes
Features
Maximum data transfer rate	300 Mbit/s
Bandwidth	5 GHz
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	5.15 - 5.85 GHz
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Networking standards	IEEE 802.11a, IEEE 802.11n
Maximum outdoor range	15000 m
Internal memory	64 MB
Flash memory	8 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Built-in processor	Yes
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Protocols
Management protocols	TDMA
Management features
Web-based management	Yes
Management platform	Pharos Control
Ports & interfaces

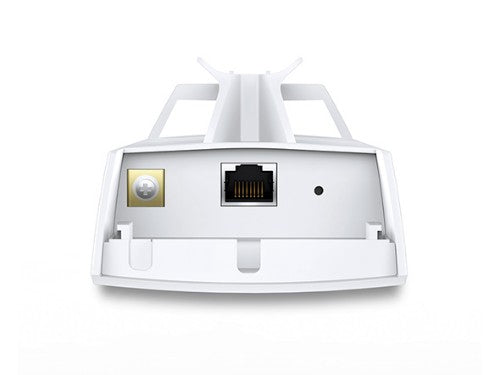

WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	13 W
Input current	0.8 A
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Design
Internal	No
Reset button	Yes
LED indicators	Yes
Product colour	White
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Antenna
Antennas quantity	1
Antenna gain level (max)	13 dBi
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Weight & dimensions
Width	224 mm
Depth	75 mm
Height	60 mm
Packaging data
Cables included	AC
Packaging content
Cables included	AC
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
System requirements
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Logistics data
Harmonized System (HS) code	85176990
