TP-Link Archer T2U Plus Internal WLAN 600 Mbit/s

USB 2.0, LED-Status, 5dBi, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz, WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, FCC, CE, RoHS

Key Features

• High-Speed WiFi: 256QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps. 200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band provide fast AC WiFi*
• Dual Band Wireless: 2.4 GHz and 5 GHz band provide flexible connectivity, giving your devices access to the latest dual-band WiFi router for faster speed and extended range
• High-Gain Antenna: A 5dBi high-gain antenna greatly enhances the reception and transmission signal strength of the USB adapter
• Supports the Latest Operating Systems: Fully compatible with Windows 10/8.1/8/7/XP and Mac OS X

Description

High Gain. High Performance.
Increased Range for a Smooth Online Experience
AC600 High Gain Wireless Dual Band USB Adapter

T2U Plus

High-Speed Dual-Band Adapter for Better Connections
The Archer T2U Plus receives WiFi signals on two separate bands. 256QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps, delivering up to 33% faster performance. 200 Mbps speeds on the 2.4 GHz band is perfect for normal use, such as web surfing with legacy devices. 433 Mbps speeds on the 5 GHz band is ideal for HD streaming and lag-free online gaming.

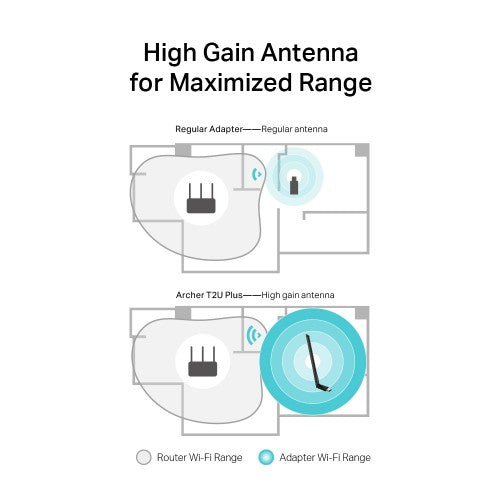

Increased Range
Archer T2U Plus has one 5dBi high-gain external antenna to ensure stronger signal transmission and reception. Enjoy a stable WiFi connection throughout your home.

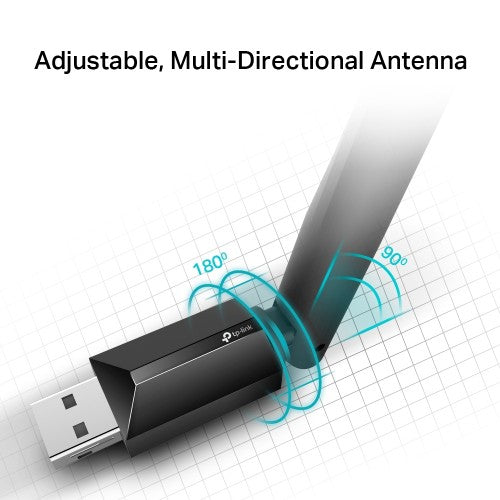

Adjustable, Omni-Directional Antenna
Rotate and adjust the antenna in multiple directions to improve user experience and performance in different environments.

Easy Setup
A friendly user interface ensures simple installation.

Advanced Security
WPA/WPA2 encryption standards keep your wireless connection safe from intruders.

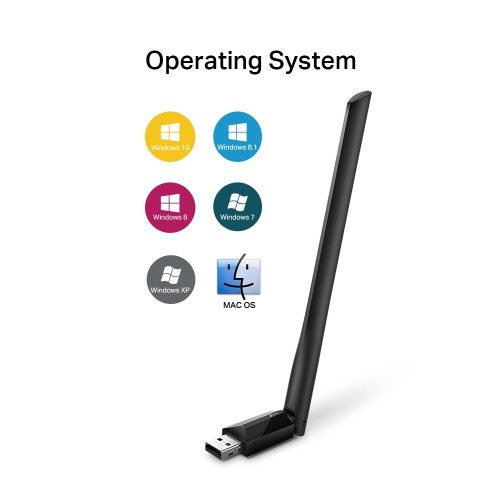

Operating System
Supports operating systems including Windows 10/8.1/8/7/XP and Mac OS.

Specifications

Ports & interfaces
Internal	Yes
USB version	2.0
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Bandwidth
Maximum data transfer rate	600 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
WLAN data transfer rates supported	150,200,433 Mbit/s
Antenna
Antenna	Yes
Frequency range	2.4 - 5 GHz
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Maximum data transfer rate	600 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
WLAN data transfer rates supported	150,200,433 Mbit/s
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Frequency range	2.4 - 5 GHz
Design
Internal	Yes
Product colour	Black
Antenna	Yes
Plug and Play	Yes
LED indicators	Status
Operating modes	Infrastructure mode
Component for	Laptop
Antenna design	External
Antenna gain level (max)	5 dBi
Power
USB powered	Yes
System requirements
Windows operating systems supported	Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 11, Windows 7 Home Premium x64, Windows 11 Enterprise, Windows 7 Professional
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	57.8 mm
Depth	18 mm
Height	173.4 mm
Package width	207 mm
Package depth	148 mm
Package height	42 mm
Package weight	161 g
Packaging data
Package width	207 mm
Package depth	148 mm
Package height	42 mm
Package weight	161 g
Quick installation guide	Yes
Packaging content
Quick installation guide	Yes
Resource CD	Yes
Performance
Plug and Play	Yes
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Windows operating systems supported	Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 11, Windows 7 Home Premium x64, Windows 11 Enterprise, Windows 7 Professional
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
