AC1200 Wireless Dual Band 4G LTE Router
Key Features
- Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
- Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Description
4G LTE with AC1200 Wi-Fi to Stream from EverywhereAC1200 Wireless Dual Band 4G LTE Router Archer MR402
Got SIM Card?
Then Plug and Play!With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a nano SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE NetworkTake full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need ItEnjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Internet Access for

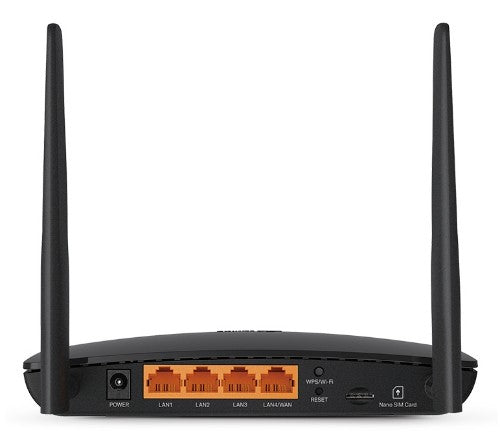

up to 64 Devices SimultaneouslyEasily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Support TP-Link OneMeshCo-work with TP-Link OneMesh products, to provide a more flexible and cost-effec
Available WAN ConnectionThe WAN/LAN port enables Archer MR402 to work as a traditional wireless router that is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Setup and ManagementSet up the Archer MR402 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
Specifications
| Ethernet LAN features |
|---|
| Ethernet WAN |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100Base-T(X) |
| DSL features |
|---|
| DSL WAN |
No |
| Mobile network |
|---|
| SIM card slot |
Yes |
| 3G/4G USB modem compatibility |
Yes |
| Mobile network generation |
4G |
| 4G bands supported |
700,800,850,900,1800,2100,2300,2500,2600 MHz |
| 3G standards |
HSPA, UMTS |
| 4G standard |
LTE-TDD & LTE-FDD |
| SIM card type |
NanoSIM |
| 3G bands supported |
850,900,2100 MHz |
| Security |
|---|
| VPN support |
PPTP VPN, OpenVPN |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Firewall |
Yes |
| Schedule access |
Yes |
| Parental control |
Yes |
| Access Control List (ACL) |
Yes |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Packaging content |
|---|
| Package type |
Box |
| Number of products included |
1 pc(s) |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
Yes |
| 3G/4G USB modem compatibility |
Yes |
| Wireless LAN features |
|---|
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network |
|---|
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| VPN support |
PPTP VPN, OpenVPN |
| Receiver sensitivity |
5 GHz:
11a 54M: -77 dBm
11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm
11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm
11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm
2.4 GHz:
11g 54M: -74.5 dBm
11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm
11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
| Port forwarding |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100Base-T(X) |
| Port triggering |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| Dynamic DNS (DDNS) |
Yes |
| Ports & interfaces |
|---|
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
4 |
| DC-in jack |
Yes |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Protocols |
|---|
| Supported network protocols |
IPv4, IPv6 |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Detachable antenna(s) |
Yes |
| Antennas quantity |
2 |
| Transmit power |
23 dBmW |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
12 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Width |
174 mm |
| Height |
33.5 mm |
| Depth |
124.5 mm |
| Packaging data |
|---|
| Package type |
Box |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Number of products included |
1 pc(s) |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
