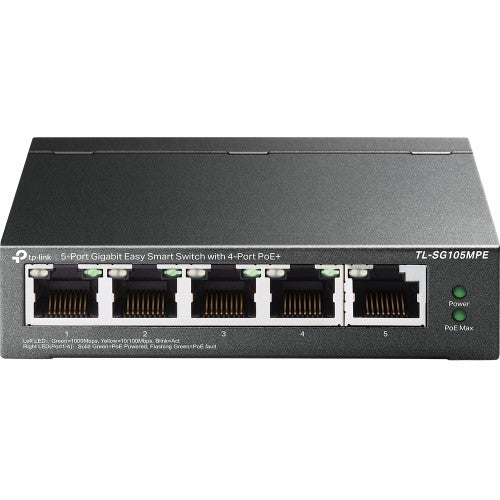

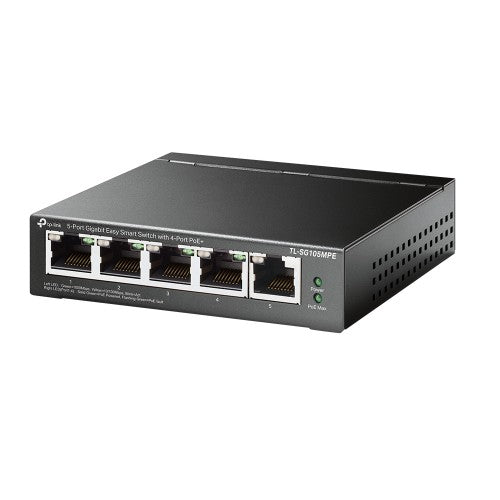

5-Port Gigabit Easy Smart Switch with 4-Port PoE+
Key Features
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 120 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Description
TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
• Five 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
• Supports PoE power up to 120 W for all PoE ports*
• Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
• Fanless design lowers energy consumption and eliminates operating noise
Warranty Period: 5-Year
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
No |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
16 |
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
7.44 Mpps |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Power |
|---|
| Power consumption (max) |
137.01 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
53.5 V |
| Power source |
DC/PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Total Power over Ethernet (PoE) budget |
120 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
99.8 mm |
| Depth |
98 mm |
| Height |
25 mm |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| Packaging data |
|---|
| Package width |
250 mm |
| Package depth |
528 mm |
| Package height |
80 mm |
| Package weight |
2.76 kg |
| Cables included |
LAN (RJ-45) |
