TP-Link 48V Passive PoE Adapter

TP-LINK

TP-Link 48V Passive PoE Adapter

SKU: POE4824G
Your price $21.00
GST included · AUD

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

48V Passive PoE Adapter

Key Features

  • Gigabit network ports
  • 48VDC passive PoE injector
  • Auto-detect and auto-supply the necessary power required
  • Convenient wall-mount kit
  • Plug-and-Play, requires no configuration

Description

Passive PoE Adapter
Powers TP-Link products that
support 48V passive PoE

Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.

Specifications

Network
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Power over Ethernet (PoE) voltage 48 V
Features
Wall mountable Yes
Plug and Play Yes
Maximum operating distance 100 m
Product colour White
LED indicators Power
Certification FCC, CE, RoHS
Ports & interfaces

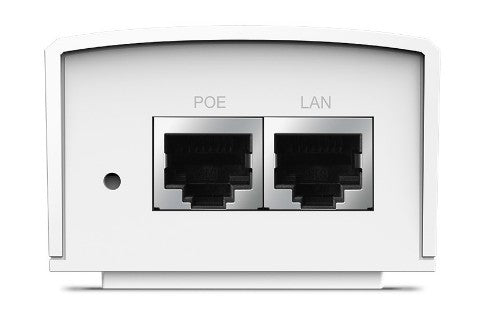

Ethernet LAN (RJ-45) ports 2
RJ-45 input ports 1
RJ-45 output ports 1
Power
Output power 24 W
Power over Ethernet (PoE) voltage 48 V
Certificates
Certification FCC, CE, RoHS
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating temperature (T-T) 32 - 104 °F
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 110 mm
Depth 57 mm
Height 38.8 mm
Package weight 370 g
Package depth 198 mm
Package width 65 mm
Package height 65 mm
Packaging content

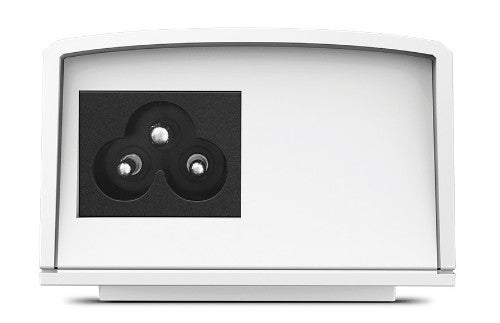

Power cord included Yes
Number of products included 1 pc(s)
Wall mounting kit Yes
Packaging data
Package weight 370 g
Package depth 198 mm
Package width 65 mm
Package height 65 mm
Technical details
Power over Ethernet (PoE) Yes
Package width 65 mm
Package height 65 mm
Operating temperature (T-T) 32 - 104 °F
Number of products included 1 pc(s)
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Harmonized System (HS) code 85044095
Compliance certificates RoHS
Indication
LED indicators Power
Logistics data
Harmonized System (HS) code 85044095
Brand
TP-LINK
SKU
POE4824G
