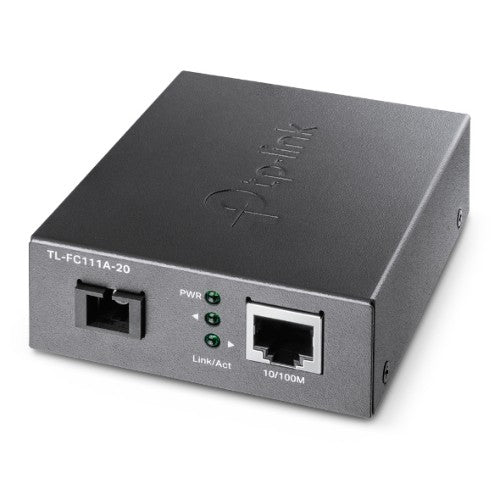

TP-Link 10/100 Mbps WDM Media Converter

TP-LINK

TP-Link 10/100 Mbps WDM Media Converter

Read reviews
SKU: TL-FC111A-20
Your price $37.40
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

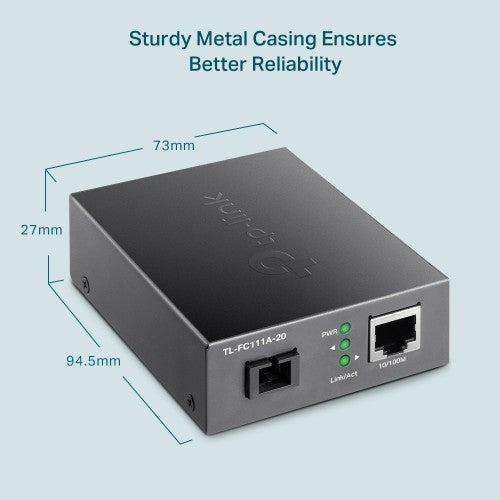

SC, RJ-45, 100Base-FX, 94.5x73x27 mm

Key Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

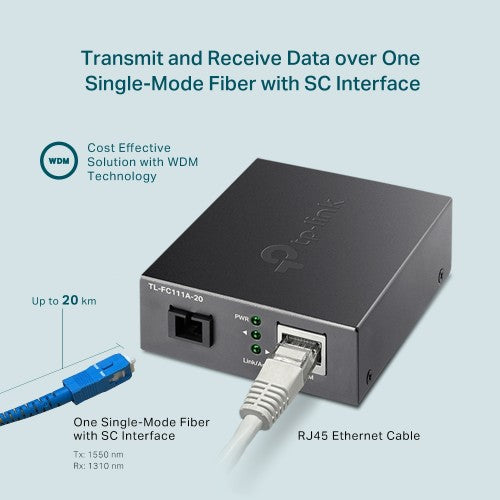

  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km

Description

What This Product Does

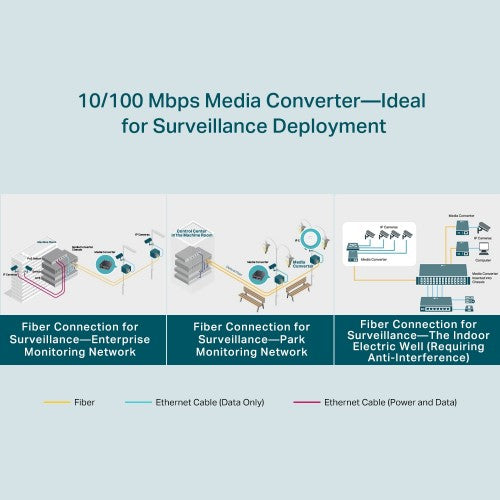

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

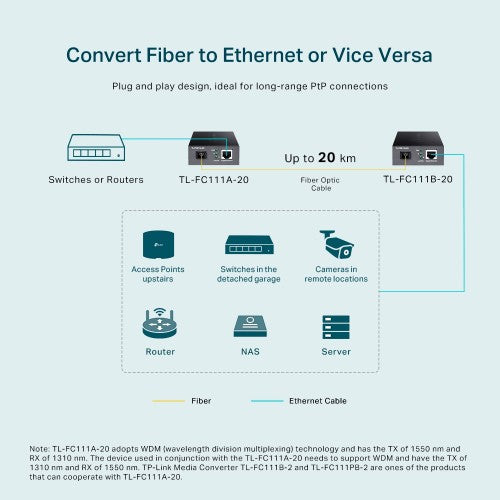

TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Specifications

Network
Fiber optic connector SC
Flow control support Yes
Auto-negotiation Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-T
Fiber ethernet cabling technology 100BASE-FX
Maximum data transfer rate 100 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates 10,100 Mbit/s
Duplex system Full, Half
Auto MDI/MDI-X Yes
Performance
Flow control support Yes
Auto-negotiation Yes
Maximum transfer distance 20000 m
Fiber mode structure Single-mode
Fiber cable diameters supported (core/cladding) 9/125 µm
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector SC
Design
Internal No

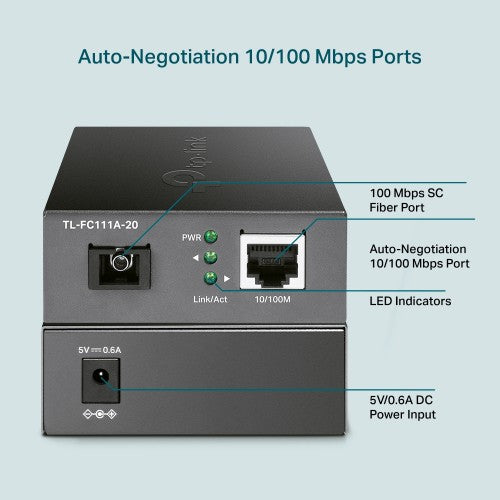

LED indicators Activity, Link, Power
Product colour Black
Certification FCC, CE
Power
Output voltage 5 V
Output current 0.6 A
Weight & dimensions
Width 94.5 mm
Depth 73 mm
Height 27 mm
Package width 165 mm
Package depth 204 mm
Package height 65 mm
Package weight 360 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Packaging data
Package width 165 mm
Package depth 204 mm
Package height 65 mm
Package weight 360 g
Technical details
Harmonized System (HS) code 85176990
Compliance certificates RoHS
Certificates
Certification FCC, CE
Logistics data
Harmonized System (HS) code 85176990
Brand
TP-LINK
SKU
TL-FC111A-20
